Immobilized Organo-Mercurial Lyase on Zeolite Using a Solid Binding Peptide

Damien N. McCarthy , Grant C. Edwards
International Journal of Environmental Bioremediation & Biodegradation. 2018, 6(1), 8-17. DOI: 10.12691/ijebb-6-1-2
Published online: July 10, 2018

Abstract

Methylmercury (MeHg) compounds can form naturally, are highly toxic, and of concern because of their tendency to bio-accumulate. Certain bacteria have evolved mechanisms that can tolerate MeHg by first demethylating MeHg compounds, before further processing. Drawing inspiration from this demethylation mechanism controlled by a single organo-mercurial lyase in a protonolysis reaction, this research uses a recombinant gene that produces this lyase plus an additional polypeptide that selectively binds to zeolite particles, effectively tethering the enzyme to the solid substrate. This work is part of a broader attempt to create a fixed bed reactor for de-methylation of MeHg. Enzyme immobilization was achieved using a solid binding peptide (SBP) with high affinity for faujasite zeolite (FZ), the choice of binding substrate in the present work. The lyase is coded for by the merB gene, and a sequence with highly conserved active site homology was obtained from E.coli plasmid R8361b. The SBP plus merB sequence was designed such that the SBP was positioned either on the N or C-terminal of the construct. The DNA was synthesized commercially, and expressed in E.coli (BL21DE3 Star) using pET100® vector. Sanger sequencing was used to confirm construct in transformed cells using standard T7 oligos. Expression was lactose induced, and SDS-PAGE electrophoresis was used to confirm protein production and size. LC-MS/MS and sequence bio-analytics confirmed peptide sequence. Silica binding assays using SDS-PAGE confirmed binding of the enzyme to the silica substrate. Enzyme functionality results using a non-methylated mercuric compound were inconclusive, however the enzyme has not been assessed using MeHg compounds at this stage.

1. Introduction

Methylated mercury species (MeHg) are highly toxic compounds that form mostly via bio-genic mechanisms under certain conditions, particularly anoxic environments with high anionic ligand content 1. Methylmercury formation is often mediated by microbial activity, in particular by sulfur and iron reducing bacteria (SRB and FeRB respectively), methanogens, and firmicutes 2, 3. The proclivity for such toxic compounds to bio-accumulate in the food web 4, and therefore impact human health, is one of the main factors MeHg compounds have received much research attention over the past decade. Apart from several transgenic plant studies aimed at bioremediation 5, 6, few studies have focused on bio-remediation of MeHg in aqueous bodies.

One strategy that may prove beneficial in this regard is inspired directly from evolved microbial metabolic mechanisms that deal with MeHg via de-methylation. Such de-methylating bacteria are ubiquitous and represented by a wide range of taxa 7. The overall microbial strategy ofen involves the intracellular reduction of Hg2+ -> Hg0 by a mercuric reductase enzymatic reaction, whereby Hg0 then naturally volatilizes and passively diffuses from the cell and out of the immediate surrounds into the atmosphere 8. Where it is necessary for microbes to deal with MeHg, the reduction reaction is preceded by MeHg intracellular interaction with an organo-mercurial lyase, which cleaves the C-Hg bond through a protonolysis reaction 9, producing CH4 and Hg2+, where mercury is then passed to the mercuric reductase enzyme. It appears that the reductase enzyme activates release of the lyase bound Hg2+ 10. The C-Hg enzymatic cleavage confers broad spectrum Hg resistance. HgR microbes with broad spectrum capabilities are characterized by the presence of the merB gene, which codes for the organo-mercurial lyase.

The mechanistic function of the merB product has not been fully elucidated, however it is highly likely to function as proposed by Parks et.al., 9. The enzyme itself is relatively small at around 24kDa, having been structurally characterized through crystallography, including various mutants, which have helped deduce the functional domain, key amino residues, and mechanistic architecture 11, 12. The may give this enzyme the ability to remain functional while immobilized on an extracellular solid substrate.

Immobilizing technologies greatly reduce the complexity of deploying this bio-catalytic strategy for remediation purposes, as living cells pose problems in terms of delivery to heterogeneous sites, geographical containment within the contaminated plume (particularly so in a water column), nutrient supply, and competition from indigenous microbes etc. 13. The concept explored in this work thus involves the extraction and immobilization of the merB gene product on a solid substrate, that being a faujasite type alumino-silicate zeolite (FZ) in particle form. This work represents the first stage of a broader project such that a fixed bed bio-catalytic reactor may be constructed to de-methylate aqueous MeHg compounds in situ.

Enzyme immobilization techniques often suffer from orientation and target accessibility issues 14. An approach that may overcome these problems is the use of solid binding peptides (SBP’s) that selectively recognize and bind to solid surfaces 15. The SBP-enzyme conjugate can be either C or N terminal, depending on the active site location and orientation required, with the SBP used as a linker to tether the enzyme to the substrate. One such class of SBPs has a high affinity for certain zeolites and can thus be used to immobilize enzymes on silica-based substrates 16. Zeolite is an ideal substrate for this work due to its inert and robust nature, and because it is readily synthesized and inexpensive. This particular SBP is highly amorphous, overcoming issues with accessibility and steric hindrance, and has been used to immobilize over 25 enzymes on silica based substrates which retained functionality 17. The immobilization of the enzyme on a silica substrate can be achieved via the expression of a fusion protein that contains this SBP linker and the organo-mercurial lyase, which is then extracted and purified from E.coli cells and bound to solid particles. These particles may then be packed in a column, and it is envisioned that MeHg concentrations may be reduced or eliminated in aqueous media which interacts with these particles.

2. Materials and Methods

2.1. Recombinant Protein Construct

Two constructs were designed with the SBP flanking either N or C terminal of the merB sequence. The SBP used is a truncated version of one previously described 17, 21. merB sequence was derived from GenBank: U77087.1, E.coli plasmid R831b, and codon optimized for expression in E.coli BL21 DE3 Star. Constructs synthesized commercially by GeneArt®. Oligos designed as per requirements and synthesized commercially by Life Technologies Corporation. Constructs synthesized in a T7 mediated expression ready pET100® vector with existing N terminal polyhistidine-tag. These are designated N[FZ]SBP+merB and C[FZ]SBP+merB for N and C terminal zeolite binding SBP position respectively. E.coli DH5α (Life Technologies Corporation) cells as stock held in 20% glycerol at -80⁰C. Expression was carried out using E.coli BL21 DE3 Star cells (Life Technologies Corporation). The SBP linker amino acid sequence is (VKTQATSREEPPRLPSKHRPG)3VKTQTAS.

2.2. Transformation and DNA Confirmation

Chemically competent E.coli DH5α and BL21 DE3 Star cells transformed using heat shock method. S.O.C. media by Thermo Fischer (Cat No. 15544034). Incubation at 37°C (shaking at 120 rpm) with 100µg/mL Ampicillin (Amp) (Thermo Fischer Cat No. 11593027) doped media. Sanger sequencing was performed by University of Nevada, Reno, at the Nevada Genomics Centre (NGC), using approximately 500ng plasmid template to 10 Pmol primer. Plasmid extraction using Qiagen QIAprep® Spin Miniprep Kit (Cat No. 27104). Oligos supplied by NGC (Fwd): T7 primer 5’ TAATACGACTCACTATAGGG. Pairwise sequence alignment was performed using Emboss Needle ©.

2.3. Expression and Purification

Lactose based auto-induction was performed using two-stage media. Cells were first grown to stationary phase using RM media plus glucose (per L: 20g casamino acids, 100mL 10x M9 salts, 1mL 1M MgCl2, 10mL glucose, Amp to 1mM in dH2O) at 37°C with shaking at 120rpm. Glucose ensures leaky T7 promoter induction can be tightly controlled, and was monitored regularly to ensure supply using glucose assays (Genzyme Diagnostics Glucose [Trinder] Assay Cat No. 22032). ZYM-5052 Media ((per L: 2 mL 1M MgSO4, 40mL 25x M Sola (per L: 88.75g NaHPO4, 85g KH2PO4, 67g NH4Cl, 17.75g Na2SO4), 2g lactose, 5mL 100% glycerol, 0.5g glucose)) was inoculated to OD600 ≈ 0.5 with RM media stationary phase cells. Protein expression quantified using Thermo Fischer EZQ™ Protein Quantification Kit Cat No. R33200. Non induced cells, and cells containing neither N[FZ]SBP+merB or C[FZ]SBP+merB as controls. 500µL aliquots were removed at various time-points, pelleted (7 x 103rpm–min x 2mins), boiled in 80µL 2x SDS at 97°C for 7mins, centrifuged (7 x 103rpm-min for 3mins), and protein expression checked (for size) using 10µL soluble product on (NuPAGE ™ 12% Bis-Tris) protein gels (1X MOPS/SDS) at 120V, followed by Coomassie Blue™ staining. Pelleted samples were stored at -20°C where necessary.

Protein purified using Ni-NTA agarose (Invitrogen, Cat. No. R901-01) by gravity fed column (Bio-Rad Poly-Prep®chromatography column (Cat. 731-1550). Binding buffer (20mM Tris, 500mM NaCl, 10mM Imidizole, 10% glycerol, pH 8.0). Wash buffer (20mM Tris, 100mM NaCl, 30mM Imidizole, pH 8.0. Elution buffer (20mM Tris, 100mM NaCl, 300mM Imidizole, pH 8.0) Synthesis of the desired amino sequence(s) was 100% confirmed by tandem mass spectrometry after trypsin digestion of excised polyacrylamide gel bands. LC-MS/MS was performed by the Nevada Proteomics Centre at the University of Nevada, Reno, using an LC gradient of 60-90 min with data analysis performed using Scaffold Version 4.8.4 with peptide threshold of 80% and protein (min 2) threshold of 99%.

2.4. Zeolite Binding Assay

Post purification, the enzyme was mixed with silica particles (SiliaFlash® Irregular Silica Gels, 60Å (Cat No. R12030B); Zeolite Y CBV100, Zeolyst Int; Sigma-Alldrich Silica Gel, 60Å (Cat 9385); and Faujasite Type Zeolite, Sigma-Aldrich (BCR704-10G)). The binding assay is described by Sunna et. al. (2013). Briefly, approximately 100mg particles are first vortexed in 1ml wash buffer (10 mM Tris–HCl, pH 7.5, 100mM NaCl and 1% Triton-X100), repeated twice, and dried under N2. Soluble protein was mixed with particles and incubated by slow rotation at room temperature for 1h. Any unbound fraction was removed after centrifugation at 10 x 103 rpm for 30s. The residual silica pellet was washed by vortexing with 100μl of 100 mM Tris–HCl buffer, pH 8.0. Washing was repeated twice and wash fraction samples retained. Bound protein was eluted using 100μl of 2x SDS PAGE-loading buffer followed by incubation at 99°C for 10 m. Pellet was vortexed briefly every 2 m during this elution step. The various fractions were analyzed using SDS-PAGE with Coomassie Blue™ staining.

2.5. Functional Assay

Functionality was assessed using an indirect assay on 250mL culture. Cells were pelleted (5krpm 15mins at 4°C), resuspended and briefly washed in lysis buffer (50mM Tris-HCl (pH 7.5), 1mM β-mercaptoethanol, 1mM PMSF, 0.5mM EDTA, 5%v/v glycerol) before centrifugation (5krpm 15mins at 4°C). Cells were resuspended in 2mL lysis buffer and sonicated on ice for 15s. The mixture was centrifuged (15krpm 10mins at 4°C) and 20µL soluble fraction added to assay solution (50mM Tris-HCl (pH 7.5), 1mM L-Cys, 1µM 4-Chloromercuribenzoic acid (PCMB)) and absorbance at λ250 monitored every minute for 20 mins. Crude extract and FZ bound enzyme were tested.

3. Results and Discussion

3.1. Protein Expression

Protein expression was first unsuccessfully attempted using IPTG, where it was noted that growth rates and viability were so variable after induction at OD600 = 0.4 - 0.6 at varying concentrations between 0.1 and 2.0µM final concentration IPTG that data sets could not be replicated. There is evidence that elevated levels of merB product can be toxic, somewhat modulated by inclusion body formation 18. Although the expected product is soluble, the insoluble fraction was also analyzed but no evidence was obtained for the expected product in this fraction. The T7 promoter used in this plasmid (pET100®) is known to be somewhat leaky 19, and to rule out toxicity problems that may be occurring, we used a glucose and lactose based induction method to tightly control expression, which proved much more successful.

Using total protein concentration as a proxy for growth rates, post induction batches were monitored every 2h for 8hrs, then sampled again at 24h. Figure 1., shows total soluble protein content after expression was induced using the glucose-lactose induction method. This result is much more in line with expectations, although of note is that the C[FZ]SBP+merB variant consistently does not seem to do as well, and in particular struggles consistently between 3 and 4h mark post induction. No attempt was made to solve that puzzle, although there is some evidence that C terminal additions to constructs are more difficult to express successfully 20. Conversely, between 3 and 4h post induction appears to be the time with the highest growth rate for N[FZ]SBP+merB. Induction time was always at or adjusted to the same cell density so this cannot explain this variable. In any case, cells with N terminal construct performed consistently better using lactose based induction, and although C[FZ]SBP+merB cells did eventually grow at a comparable rate, they took additional time to recover post induction and appear to have suffered some considerable viability issues as well.

SDS-PAGE was used to help detect soluble protein fraction. Figure 2, is an image of the Coomassie Blue™ stained SDS-PAGE gel, indicating products of the expected MW of approximately 34.8kDa. Lane 14 is overspill and can be ignored. The induced bands are clearly not visible 2h post induction and we surmise this is due to residual glucose availability, thus repressing expression. Controls were both IPTG induced at OD600=0.5 and these gel fractions represent 8h post induction.

In order to confirm N[FZ]SBP+merB growth, cells were again grown until 8h post induction, this time using auto induction method only. As is clearly visible in Figure 3, the N terminal variant successfully grew, and the time series clearly indicates any toxicity issues seem to have been mitigated as progressively more protein is found in the soluble fraction as growing time is extended. The wells were each loaded with 10µL sample ruling out inconsistent volumes, indicating the sample was progressively more concentrated with the desired product.

3.2. Sequencing

Cloning confirmation of the desired construct was obtained using Sanger Sequencing, and expression was confirmed using LC-MS/MS after trypsin digestion (data in supplementary). The results for C terminal variant were not in line with predicted results for either. In particular, C[FZ]SBP+merB variant mass spectrometry results were poor. There was no match for a peptide adjacent to the C term although one was predicted. MS results for N[FZ]SBP+merB were more conclusive, showing 8 peptide matches representing 80aa’s with over 25% coverage, including coverage of the SBP conjugate. Due to the many problems associated with the C terminal variant it is likely the N terminal variant would be easier to scale up production.

The SBP has an amorphous structure which can assist with enzyme orientation and steric hindrance issues. This structure was confirmed theoretically using the Foldindex© 22 software to ascertain whether the N terminal SBP segment of the polypeptide conjugate is folded as opposed to the functional merB derived segment. Figure 4 clearly indicates the amino sequence containing the SBP is predicted to be unfolded.

This amorphous structure is important because when tethering enzymes to solid substrates, maximum flexibility is required to ensure the target molecule, in this case methylmercury, is not hindered from interacting with the functional domain of the enzyme. The SBP structure allows for greater degrees of freedom to as opposed to direct binding on solid substrates.

As sequencing data indicated successful production of the enzyme with SBP for the N[FZ]SBP+merB variant, a series of silica/zeolite binding assays were performed.

3.3. Binding Assays

Solid binding peptides are a valuable tool for recombinant production of immobilized enzymes. The particular SBP used in the current approach is known to have a very high selective affinity for FZ, affording it great potential for use in a variety of contexts 21. To evaluate the binding of our products to silica and zeolites, a binding assay was performed. Although the binding mechanism has not been fully elucidated, to assess the robustness of the N[FZ}SBP +merB:FZ conjugate, particle bound enzyme were subjected to repeated washing by 30s vortexing in wash buffer and the wash fractions analyzed for unbound enzyme.

As some native E.coli proteins are known to bind to silica, both N and C terminal products were purified by HIS-tag and exchange buffer treatments prior to binding. To ensure purity, silica and zeolite particles were prewashed in wash buffer and dried under N2. No enzyme was detected for the C[FZ]SBP+merB variant after purification. This was not surprising given the lack of detection of the SBP conjugate with MS/MS, troublesome growth issues, and poorly resolved MW data for this variant. Considering the ongoing issues with the C terminal variant, we decided to concentrate on N[FZ]SBP+merB, and all following results are based on that construct.

Our initial use of 60Å silicas and CBV100 showed low or no binding capacity which was expected and is in line with previous research 17, 21. Type Y faujasite zeolite is known to have greater binding capacity for this SBP. Figure 5 and Figure 6 tend to support that notion. Further, we have used a truncated version of the SBP where only 3 repeats of the given amino sequence were used instead of the four used by Nygard et.al., (2002) in their initial work. This was proposed by Sunna et.al., (2013) and seems to be confirmed by our results.

Figure 6 indicates that the N[FZ]SBP+merB variant was successfully bound to FZ type zeolite. The unbound fraction in lane 2 is likely due to loading issues where too much enzyme was mixed with particles and maximum binding capacity was breached. No attempt was taken to optimize binding amounts, but this would obviously be required in scale up. Similarly, the first two wash fractions indicate loss of enzyme, and we surmise this is due to overloading because, by wash 3 fraction, there is little or no enzyme coming off. The eluted fraction clearly shows that the enzyme had previously been successfully bound to the FZ type zeolite, and so the fact there was no enzyme in the third wash fraction indicates what was bound was bound strongly.

  • Figure 5. SDS-PAGE gel indicating SBP does not bind to Siliaflash or Sigma-Aldrich 60Å silica gel, or CBV100 zeolite. Lane 1. Ladder (Bio-rad broad range), Lane2. Crude extract, Lane 3. Ni purified, Lane 4. Unbound on Sigma-Aldrich gel, Lane 5. Combined wash fractions for previous, Lane 6. Eluted fraction, Lane 7. Unbound on CBV100 zeolite, Lane 8. Combined wash fractions for previous, Lane 9. Eluted fraction, Lane 10. Siliaflash gel unbound, Lane 11. Combined wash fractions for previous, Lane 12, Eluted fraction

Our attempts to assess functionality of the enzyme were not conclusive at this stage. In particular, we are yet to quantify enzymatic activity using methylmercury compounds. In previous work by the author (unpublished) the companion merA gene was designed and bound to silica in a similar fashion. There was evidence of retained functionality in that case. One issue with the merA enzymatic reaction is that it requires NADPH+ as a co-factor, making the functionality more difficult and expensive to replicate while the enzyme was immobilized on a solid substrate. However if a suitable co-factor analog can be found then this technology may be more practical. One can envision a co-localised merA;merB set up where both enzymes could be bound to the same particle providing two stage catalysis resulting in not only degradation but removal of MeHg from contaminated waters.

4. Conclusion

Successful expression and binding to a solid zeolite substrate for this novel recombinant enzyme paves the way for a methyl mercury filter to be designed and employed to remediate contaminated waters by degrading the compound to its much less toxic form. The benefits of binding with an amorphous peptide linker are that it offers advantages over other traditional binding methods in terms of orientation and steric hindrance problems that are often encountered. Even though we were unable at this stage to show the merB derived lyase enzyme remained functional while bound, this technique has been used to bind enzymes that remained functional. Difficulties with the highly toxic nature of methylmercury precluded any further optimization at this preliminary stage. The method used in this work seems to be promising in that both merB and merA (unpublished) have now been bound to silica nanoparticles using this method, More research is required to address how to implement an efficient and cost effective way to degrade and remove MeHg from aqueous environments.

Acknowledgements

The authors wish to thank Christie Howard, PhD, and Brandon Purdy of University of Nevada, Reno (UNR) for their generous assistance with this work and Assoc. Dean David Shintani, Biotechnology and Natural Resources, UNR, for logistical support. Funding for this work was provided by the Australian Government Research Training Program (RTP), and Macquarie University, NSW, Australia (HDR funding initiative).

Competing Interests Statement

The authors whose names are listed on this manuscript certify that they have NO affiliations with or involvement in any organization or entity with any financial or non-financial interest in the subject matter or materials discussed in this manuscript, and that there are no conflicts of interest to disclose.

Abbreviations

Hg = mercury; MeHg = methylated mercury; SRB = sulfur reducing bacteria; FeRB = iron reducing bacteria; SBP = solid binding peptide; HgR = mercury resistant microbes; OD600 = optical density at λ600 nm, FZ = faujasite type zeolite.

References

[1]  Frohne, T., Rinklebe, J., Langer, U., Du Laing, G., Mothes, S. and Wennrich, R., 2012. Biogeochemical factors affecting mercury methylation rate in two contaminated floodplain soils. Biogeosciences, 9(1), pp.493-507.
In article      View Article

[2]  Gilmour, C.C., Henry, E.A. and Mitchell, R., 1992. Sulfate stimulation of mercury methylation in freshwater sediments. Environmental Science & Technology, 26(11), pp.2281-2287.
In article      View Article

[3]  Kerin, E.J., Gilmour, C.C., Roden, E., Suzuki, M.T., Coates, J.D. and Mason, R.P., 2006. Mercury methylation by dissimilatory iron-reducing bacteria. Applied and environmental microbiology, 72(12), pp.7919-7921.
In article      View Article  PubMed

[4]  Morel, F.M., Kraepiel, A.M. and Amyot, M., 1998. The chemical cycle and bioaccumulation of mercury. Annual review of ecology and systematics, pp.543-566.
In article      View Article

[5]  Lyyra, S., Meagher, R.B., Kim, T., Heaton, A., Montello, P., Balish, R.S. and Merkle, S.A., 2007. Coupling two mercury resistance genes in Eastern cottonwood enhances the processing of organomercury. Plant biotechnology journal, 5(2), pp.254-262.
In article      View Article  PubMed

[6]  Basak, B. and Dey, A., 2015. Bioremediation Approaches for Recalcitrant Pollutants: Potentiality, Successes and Limitation. Toxicity and Waste Management Using Bioremediation, p.178.
In article      PubMed

[7]  Boyd, E. and Barkay, T., 2012. The mercury resistance operon: from an origin in a geothermal environment to an efficient detoxification machine.Frontiers in microbiology, 3, p.349.
In article      View Article  PubMed

[8]  Fox, B. and Walsh, C.T., 1982. Mercuric reductase. Purification and characterization of a transposon-encoded flavoprotein containing an oxidation-reduction-active disulfide. Journal of Biological Chemistry, 257(5), pp.2498-2503.
In article      PubMed

[9]  Parks, J.M., Guo, H., Momany, C., Liang, L., Miller, S.M., Summers, A.O. and Smith, J.C., 2009. Mechanism of Hg− C Protonolysis in the Organomercurial Lyase MerB. Journal of the American Chemical Society, 131(37), pp.13278-13285.
In article      View Article  PubMed

[10]  Silva, P.J. and Rodrigues, V., 2015. Mechanistic pathways of mercury removal from the organomercurial lyase active site. PeerJ, 3, pp 1127.
In article      View Article  PubMed

[11]  Lafrance-Vanasse, J., Lefebvre, M., Di Lello, P., Sygusch, J. and Omichinski, J.G., 2009. Crystal structures of the organomercurial lyase merb in its free and mercury-bound forms insights into the mechanism of methylmercury degradation. Journal of Biological Chemistry, 284(2), pp.938-944.
In article      View Article  PubMed

[12]  Di Lello, P., Benison, G.C., Valafar, H., Pitts, K.E., Summers, A.O., Legault, P. and Omichinski, J.G., 2004. NMR structural studies reveal a novel protein fold for MerB, the organomercurial lyase involved in the bacterial mercury resistance system. Biochemistry, 43(26), pp.8322-8332.
In article      View Article  PubMed

[13]  Boopathy, R., 2000. Factors limiting bioremediation technologies. Bioresource technology, 74(1), pp.63-67.
In article      View Article

[14]  Wingard, L.B., Katchalski-Katzir, E. and Goldstein, L. eds., 2014.Immobilized enzyme principles: applied biochemistry and bioengineering (Vol. 1). Elsevier.
In article      View Article

[15]  Care, A., Bergquist, P.L. and Sunna, A., 2015. Solid-binding peptides: smart tools for nanobiotechnology. Trends in biotechnology, 33(5), pp.259-268.
In article      View Article  PubMed

[16]  Patwardhan, S.V., Emami, F.S., Berry, R.J., Jones, S.E., Naik, R.R., Deschaume, O., Heinz, H. and Perry, C.C., 2012. Chemistry of aqueous silica nanoparticle surfaces and the mechanism of selective peptide adsorption. Journal of the American Chemical Society, 134(14), pp.6244-6256.
In article      View Article  PubMed

[17]  Sunna, A., Chi, F. and Bergquist, P.L., 2013. A linker peptide with high affinity towards silica-containing materials. New biotechnology, 30(5), pp.485-492.
In article      View Article  PubMed

[18]  Murtaza, I., Dutt, A. and Ali, A., 2002. Biomolecular Engineering of Escherichia coli Organo-mercurial Lyase Gene and its Expression, Indian Jnl of Biotech, Vol. 1, pp 117-120.
In article      View Article

[19]  Mertens, N., Remaut, E. and Fiers, W., 1995. Tight transcriptional control mechanism ensures stable high-level expression from T7 promoter-based expression plasmids. Nature Biotechnology, 13(2), pp.175-179.
In article      View Article

[20]  Waugh, D.S., 2005. Making the most of affinity tags. Trends in biotechnology, 23(6), pp.316-320.
In article      View Article  PubMed

[21]  Nygaard, S., Wendelbo, R. and Brown, S., 2002. Surface‐specific zeolite‐binding proteins. Advanced Materials, 14(24), pp. 1853-1856.
In article      View Article

[22]  Prilusky, J., Felder, C.E., Zeev-Ben-Mordehai, T., Rydberg, E.H., Man, O., Beckmann, J.S., Silman, I. and Sussman, J.L., 2005. FoldIndex©: a simple tool to predict whether a given protein sequence is intrinsically unfolded. Bioinformatics, 21(16), pp.3435-3438.
In article      View Article  PubMed


Supplementary data

The following are for N terminal variant only.

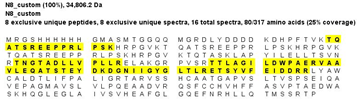

MS results following trypsin digest as per Scaffold v 4.8.4. Highlighted are peptide matches.

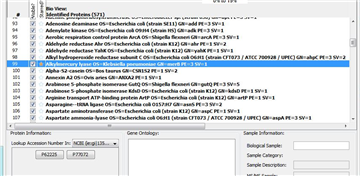

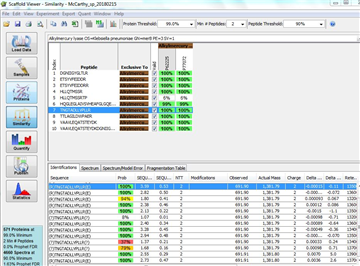

Scaffold output for second expression replicate (gel band excision). 10 unique peptide matches for P77072 (alkyl organomercurial lyase)

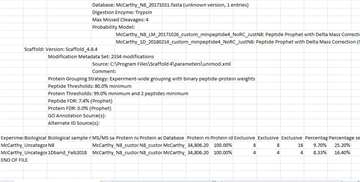

Scaffold output second replicate expression (gel excision) – mass spec results.

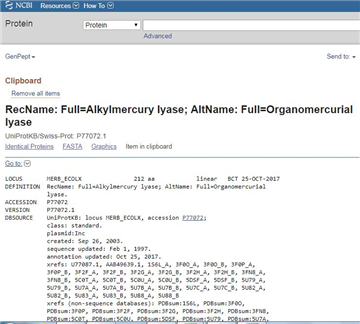

NCBI search results on accession number P77072

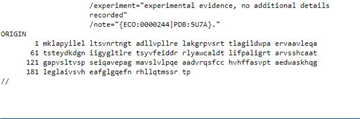

NCBI sequence confirmation on accession number P77072

Excerpt from protein report indicating 100% id for both replicates

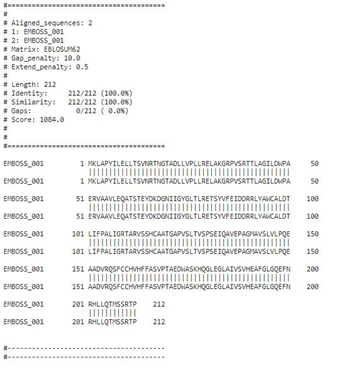

Emboss Needle pairwise sequence results P77072 amino seq vs designed construct (100% match 212 residues).

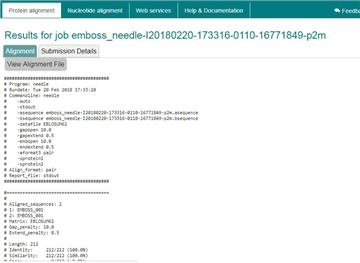

Emboss Needle pairwise sequence results P77072 amino sequence vs designed construct confirming mass spec id match 100%.

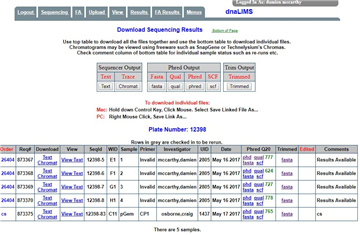

Genomic centre results

GTGCATGCAAGGAGATGGCGCCCAACAGTCCCCCGGCCACGGGGCCTGCCACCATACCC ACGCCGAAACAAGCGCTCATGAGCCCGAAGTGGCGAGCCCGATCTTCCCCATCGGTGAT GTCGGCGATATAGGCGCCAGCAACCGCACCTGTGGCGCCGGTGATGCCGGCCACGATGC GTCCGGCGTAGAGGATCGAGATCTCGATCCCGCGAAATTAATACGACTCACTATAGGGG AATTGTGAGCGGATAACAATTCCCCTCTAGAAATAATTTTGTTTAACTTTAAGAAGGAGA TATACATATGCGGGGTTCTCATCATCATCATCATCATGGTATGGCTAGCATGACTGGTGG ACAGCAAATGGGTCGGGATCTGTACGACGATGACGATAAGGATCATCCCTTCACCATGG TTAAAACCCAGGCAACCAGCCGTGAAGAACCGCCTCGTCTGCCGAGCAAACATCGTCCG GGTGTGAAAACACAGGCCACCTCACGCGAAGAACCTCCACGCCTGCCTTCAAAACACCG TCCTGGCGTAAAAACGCAGGCGACAAGTCGTGAGGAACCTCCGCGTTTACCGTCTAAAC ATAGACCTGGGGTGAAAACCCAGACCGCAAGCAAACTGGCACCGTATATTCTGGAACTG CTGACCAGCGTTAATCGTACCAATGGCACAGCCGATCTGCTGGTTCCGCTGCTGCGTGAA CTGGCAAAACGTCGTCCGGGTTAGCCGTACCACACTGGCAGTATTCTGGATTGGCCTGCA GACGTGTTGCAG
