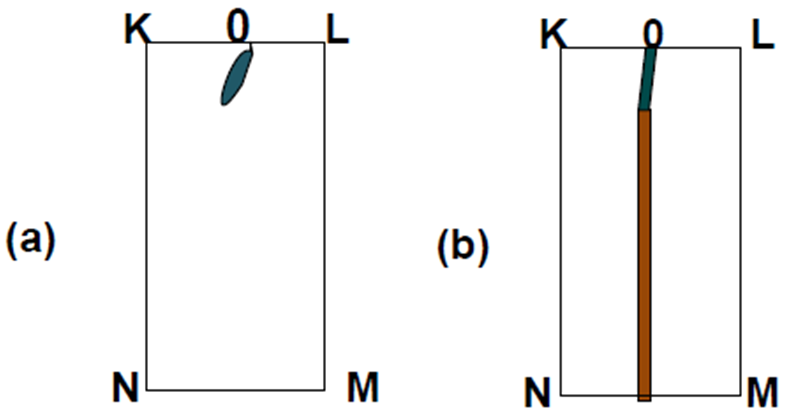

Figure 9. (a) The orthogonal KLMN had an elliptic crack such that the up- per end of the bix axis 0 belonged to KL side (b) The crack fastly grows at the lower end of the big axis of the ellipse and paralelly directs to the compressive load σ_zz [31,34,35,36,37,38,40]. The elliptic crack vanishes and the propagation of crack in that area due to the union of invissible microcracks [39]

From

Does Temperature Effects the Growth of Cracks in a Submarine Volcano That is under a Hot-spot?

M. Tsili, D. Zacharopoulos
