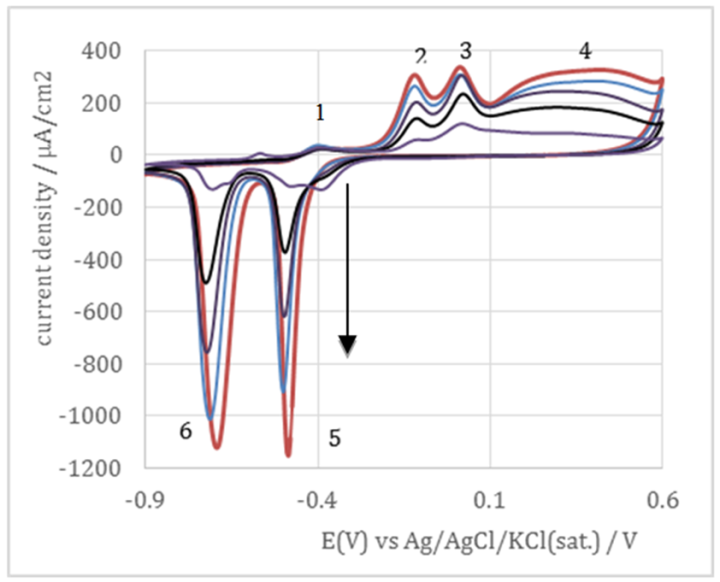

Figure 9. CV of Cu in alkaline solutions at different pH (11-13). Scan rate 20 mV/s (then arrow indicates increasing pH). After each run the electrode was intensively rinsed with water

From

Experimental Investigations of Alkaline Silver-zinc and Copper-zinc Batteries

A. Habekost

World Journal of Chemical Education. 2016, 4(1), 4-12 doi:10.12691/wjce-4-1-2
