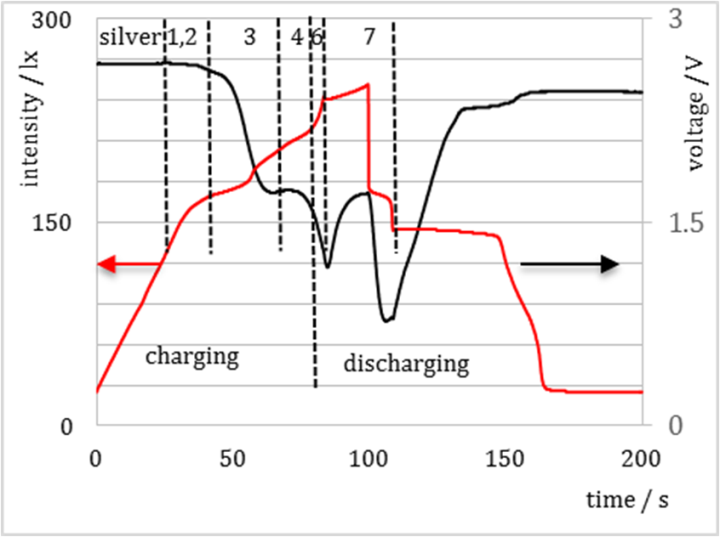

Figure 8. Results of the reflection intensity (black), and charging and discharging voltage (red). The numbers correlate with those of Figure 1 and the electrode reactions mentioned above. Charging-time: 100 s

From

Experimental Investigations of Alkaline Silver-zinc and Copper-zinc Batteries

A. Habekost

World Journal of Chemical Education. 2016, 4(1), 4-12 doi:10.12691/wjce-4-1-2
