Abstract

This study evaluates the predictive performance of the Kuz-Ram model and its extensions (Shifted Kuz-Ram and Extended Kuz-Ram) for blast-induced fragmentation in a hard rock geological context: the Diack basalt quarry in Senegal. Particle size distributions were obtained through WipFrag® image analysis and compared to model predictions. The results show that the original Kuz-Ram model (1987) reproduces the general trend with an R² of 0.91 but underestimates the midsize range. The introduction of the shifting factor (Shifted Kuz-Ram) significantly improves the fit (R² = 0.96). The Extended Kuz-Ram model by Cunningham (2005), after calibration of the C(A) and C(n) coefficients, offers the best performance with an R² of 0.995 and an RMSE of 2.76%, demonstrating the importance of local adaptation of empirical parameters. This study contributes to optimizing blast design in basaltic environments and highlights the necessity of calibrating models with field data.

1. Introduction

Blasting is a key operation in mining and quarrying, as it directly conditions the productivity of downstream operations (loading, hauling, crushing) and strongly influences energy consumption and operating costs ^{1, 2}. The resulting particle size distribution (fragmentation) from a blast is therefore a critical parameter for optimizing the mine-to-mill chain; improving fragmentation reduces grinding energy and increases crusher productivity ². Accurate prediction of post-blast particle size distribution is essential for optimizing blast parameters (burden, spacing, explosive charge) and adapting downstream processes, particularly in varied geological contexts such as hard igneous rocks (basalt) ³. In Senegal, aggregate quarrying supports a booming construction sector, but the lack of predictive approaches adapted to local lithologies often hinders yield optimization.

Initial theoretical approaches date back to the work of Kuznetsov ⁴ on mean fragment size and Rosin & Rammler ⁵ on the particle size distribution function. Cunningham synthesized these approaches into the Kuz-Ram model ^{6, 7}, which combines Kuznetsov's equation for mean size and the Rosin-Rammler function for distribution. This model is widely used for blast design and fragmentation assessment. Subsequently, Spathis ⁸ proposed a correction concerning the confusion between mean size and median size, which led Ouchterlony ⁹ to introduce a shifting factor into the model, giving rise to the Shifted Kuz-Ram. Cunningham ¹⁰ also proposed an extended version of the model (Extended Kuz-Ram) incorporating the effect of timing and delay scatter on fragmentation.

Despite these developments, discrepancies persist between predictions and field measurements due to local geological variability, blast parameters, and explosive characteristics. It is therefore necessary to evaluate these models on specific contexts, such as the massive basalt of Diack, to identify the most robust method.

In this context, the present study systematically compares the performance of three models from the Kuz-Ram family: (i) the original model by Cunningham ⁷, (ii) the Shifted Kuz-Ram model as formalized by Ouchterlony ⁹, and (iii) the Extended Kuz-Ram model by Cunningham ¹⁰. The evaluation is carried out at the Diack quarry (basalt) in Senegal. Reference particle size curves were obtained through WipFrag® image analysis after blasting.

The objective is twofold: (i) to examine each model's ability to reproduce measured particle size distributions, and (ii) to identify the model best suited to the basaltic context. This work helps fill the lack of comparative studies applied to Senegalese rocks and provides a scientific basis for future optimization of blast parameters.

2. Methodology

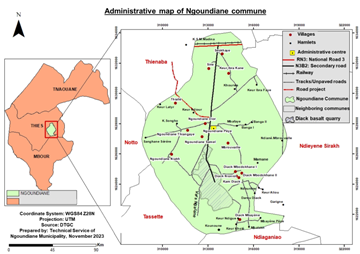

The Diack quarry is located in the Ngoudiane municipality, approximately 37 km southeast of Thiès (Senegal). Figure 1 shows the quarry location. It exploits massive, dense, and resistant volcanic basalt from the Tertiary volcanism of the region. This basalt presents several facies ranging from fine to coarse, influencing its hardness and mechanical properties ¹¹. Due to its compactness and low porosity, it serves as a reference in Senegal for the production of high-performance aggregates ¹².

Actual particle size distributions were obtained through image analysis after blasting. For the blast, a total of 15 photographs of the blasted face were taken with a digital camera, placing a foldable wooden measuring rule folded to form a 22 cm square as a scale object. The sampling strategy followed the recommendations of the WipWare : each image was framed to contain at least 400 fragments, and systematic coverage of the muckpile was performed to ensure statistical representativeness. This protocol reduces biases related to camera angle and image representativeness ^{13, 14}. Figure 2 illustrates the blasted muckpile at the Diack quarry.

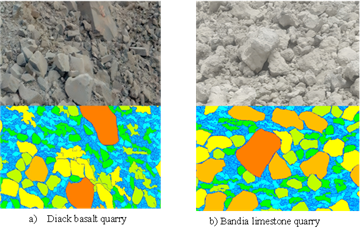

The calibrated images were then processed with WipFrag® software to automatically detect fragment outlines and generate cumulative particle size curves (cumulative % passing vs. size in mm). Several images from this blast were averaged to obtain a representative distribution, according to practices described by Nanda & Naik ¹⁵. Figure 3 shows the particle size curve obtained for the Diack basalt.

This measured distribution serves as the baseline reference for comparison with predictions generated by the empirical fragmentation models.

The Kuz-Ram model combines the Kuznetsov ⁴ equation for mean fragment size x_m and the Rosin & Rammler ⁵ distribution function.

The mean size is calculated by the following Kuznetsov–Cunningham equation:

(1)

where x_m is the mean size (cm), q is the powder factor (kg/m³), Q is the explosive charge per hole (kg), RWS is the relative weight strength compared to ANFO, and A is the rock factor, reflecting the mechanical and structural characteristics of the rock mass. It can be estimated either by the formula proposed by Cunningham ⁷,

(2)

or from the blastability index (Lilly ¹⁶) with.

The particle size distribution is described by the Rosin-Rammler function:

(3)

where Rx represents the cumulative fraction passing a sieve of mesh size x, and n is the uniformity index, which controls the fragment uniformity. The latter is calculated by:

(4)

where B is the burden (m), S is the spacing between holes (m), ϕ_h​ is the hole diameter (m), L_b​ is the bottom charge length (m), L_c​ is the column charge length (m), L_tot​ is the total charge length, possibly above ground level (m), H is the bench height (m). According to Olofsson ¹⁷, the drilling deviation SD (m) can be estimated using the relation: SD=ϕ_h+0.03L, with L being the hole depth (m).

To correct certain biases observed in the original Kuz-Ram model, Spathis ⁸ introduced a variant based on the introduction of a shifting factor g(n). This approach was subsequently formalized and named the Shifted Kuz-Ram model by Ouchterlony ⁹.

In this version, the Kuznetsov–Cunningham function is modified by introducing a shifting factor g(n), which essentially shifts the particle size distribution towards smaller x50 values or leads to predicting more fines ⁸.

The proposed equation linking the median size x50 to the mean size x_m is:

(5)

with

(6)

where Γ is the mathematical Gamma function.

It should be noted that the introduction of the shifting factor g(n) by Ouchterlony ⁹ aimed primarily to correct the confusion between mean size x_m and median size x₅₀ pointed out by Spathis ⁸. Nevertheless, as highlighted by Ouchterlony & Sanchidrián ¹⁸, the revised equations of the Kuz-Ram model ⁷ had already been calibrated directly on x₅₀ data.

Nevertheless, its use may remain relevant as it allows shifting the Kuz-Ram model towards a prediction closer to the measured particle size distribution. This precision underscores that subsequent developments of the Kuz-Ram model essentially rely on predicting the median size x₅₀, which reinforces its statistical coherence and operational use.

In his article "The Kuz-Ram fragmentation model -- 20 years", Cunningham ¹⁰ summarizes and adjusts the classic Kuz-Ram formulations, explicitly introducing the effect of timing and delay scatter on fragmentation (via factors A_t and the scatter ratio) ^{10, 19}. These additions aim to make the model more accurate in modern blasting contexts (electronic detonators, delay control) ^{10, 19}.

Equation (1) for the mean fragment size is modified according to:

(7)

with

• A_t: time dispersion factor which depends on the ratio T/T_max. For T/Tmax between 0 and 1:

(8)

and for T/T_max > 1:

(9)

Here, T is the actual delay between consecutive holes in the same row (ms), and T_max is the optimal value for this delay. Factor A_t plays an empirical modulation role on fragmentation according to blast synchronization. The idea is that optimal detonation synchronization improves fragmentation, while delays that are too short or too long degrade it ¹⁰.

The optimal delay is approximately given by:

(10)

where C_p is the longitudinal wave velocity (km/s), B is the burden (m), and the coefficient 15.6 comes from empirical calibration combining propagation time values and experimental scale.

• C(A): correction factor for the rock factor, ranging between 0.5 and 2.

The uniformity equation (4) is modified to integrate precision effects (delay scatter):

(11)

where C(n) is a correction factor used to adjust the uniformity index when it does not match algorithm predictions, and n_s is the uniformity factor determined by the scatter ratio in equation ¹⁰.

Indeed, Cunningham also introduces the effect of timing scatter and proposes the concept of scatter ratio R_s:

(12)

which moderates the uniformity index when scatter is significant. In this way, the model considers not only the blast parameters but also the execution quality of the initiation system.

Note that C(A) and C(n) are multiplicative factors used to adapt/calibrate the equations to site-specific conditions ¹⁹.

Finally, Cunningham ¹⁰ maintains the use of the Rosin-Rammler particle size distribution, as defined by equation (3), despite certain criticisms ^{9, 18}.

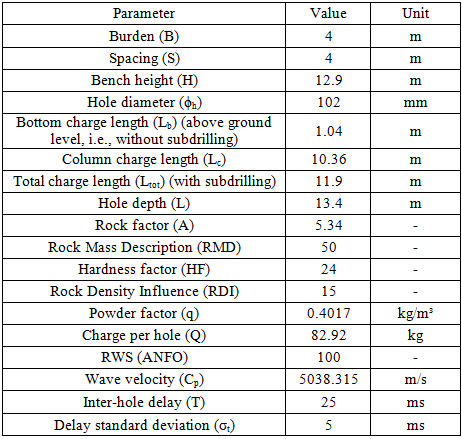

For the Extended model, coefficients C(A) and C(n) were numerically optimized by minimizing the root mean square error between predictions and WipFrag® measurements. For the other models, no additional adjustments were applied beyond the field-measured input parameters (Table 1).

3. Analysis of Results

The particle size distributions measured at the Diack quarry (Figure 3) were compared to the predictions of the three models. The performance indicators used are the coefficient of determination (R²), root mean square error (RMSE), mean absolute error (MAE), and standard error of estimate (SEE).

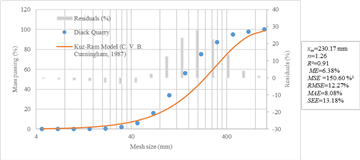

The model by Cunningham ⁷ gives a mean size x_m= 230.17 mm and a uniformity index n = 1.26. The overall fit is satisfactory (R² = 0.91), but an underestimation of particles in the 100–464 mm range is observed, with a mean error of 6.38% and an RMSE of 12.27% (Figure 4).

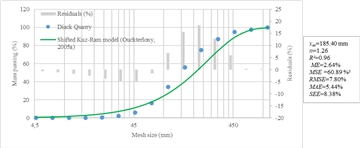

The application of the shifting factor reduces the median size to x₅₀ = 185.40 mm, for the same index n = 1.26. The fit quality improves significantly with R² = 0.96, RMSE = 7.89%, and MAE = 5.47% (Figure 5). The underestimation of the mid‑size particles is corrected, but a slight overestimation of very fine fractions (< 68 mm) appears.

Without calibration of coefficients C(A) and C(n) (default values = 1), the Extended model gives a mean size of 230 mm and a uniformity index n = 0.59 (below the usual limit of 0.7), with a poor fit (R² = 0.794, RMSE = 18.4%). After numerical optimization, the retained values are C(A) = 0.62 and C(n) = 2.83, leading to x_m = 142.4 mm and n = 1.67. The fit becomes excellent: R² = 0.995, RMSE = 2.76%, MAE = 1.98% (Figure 6). The predicted curve coincides remarkably with the measurements over the entire particle size range.

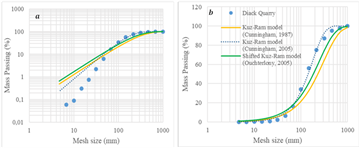

Figure 7 compares the particle size curves predicted by the three Cunningham models with the experimental measurements. The original model underestimates the intermediate fractions, the shifted model improves the fit, and the calibrated Extended model reproduces the measured distribution almost perfectly.

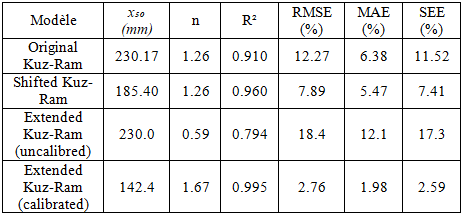

Table 2 summarizes the performance indicators for the three models.

To refine the evaluation of the three Cunningham models applied to the Diack quarry, we adapted the scatter and Radar plots presented in Figure 8 and Figure 9.

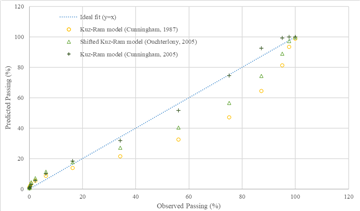

Figure 8 presents a scatter plot of cumulative passing predicted by each model against measured passing. Points aligned on the first bisector indicate a perfect prediction. The results reveal contrasting trends at the study site. The models tend to overestimate the proportion of fine fragments, while intermediate size classes are often underestimated. It is observed that the calibrated Extended Kuz-Ram model comes closest to this ideal line, confirming its superiority. The Shifted Kuz-Ram shows moderate dispersion, while the Original Kuz-Ram shows more pronounced deviations for intermediate fractions.

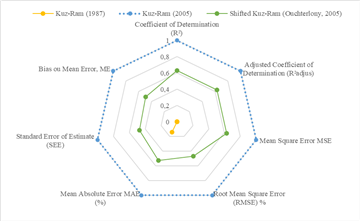

Finally, Figure 9 normalizes several error metrics (R², R²_adjus, MSE, RMSE, MAE, SEE and ME) for each of the three models. This normalization highlights the relative performance gap. The calibrated Extended model shows the lowest errors across all criteria, underscoring its robustness for this lithological context.

4. Discussion

The obtained results show that the performance of empirical fragmentation models varies significantly according to the degree of sophistication and applied calibration. In the context of the massive Diack basalt, the original Kuz-Ram model ⁷ provides an acceptable first approximation but with a marked underestimation in the intermediate size range (Figure 4). This bias is consistent with literature observations, which attribute this limitation to the confusion between mean size and median size, as well as the absence of consideration for the upper block size limit ¹⁸.

The introduction of the shifting factor g(n) (Shifted Kuz-Ram) effectively corrects this error by bringing the median size to a more realistic value (185 mm instead of 230 mm). The improvement in fit (R² increases from 0.91 to 0.96) confirms the relevance of this correction for the Diack basalt. However, a slight overestimation of the finest fractions (< 68 mm) remains (Figure 5), which could be related to the shape of the Rosin-Rammler function, less adapted to the distribution tail ⁹.

The Extended KuzRam model ¹⁰ proves to be the most effective, provided local calibration of coefficients C(A) and C(n) is performed. Without calibration, its results are even inferior to the original model (Figure 6), highlighting the danger of using default parameters. Calibration allowed optimizing these coefficients (0.62 and 2.83 respectively), leading to an almost perfect prediction (R² = 0.995). This improvement is explained by the consideration of the effect of timing and delay scatter, which are key factors in fragmentation control ¹⁰. The C(A) value lower than 1 indicates that the effective rock factor is lower than the initial estimate, likely due to the natural fracturing of the rock mass.

The obtained value C(n)=2.83 is substantially higher than the default value of 1 ¹⁰ and reflects a greater uniformity than that predicted by the geometric parameters alone, which may be due to good blast synchronization. However, such a deviation from the default value warrants discussion. As noted by Ouchterlony and Sanchidrián ¹⁸, the validation of empirical fragmentation models requires multiple blasts, because the variability in blasting conditions can distort localized calibrations. The fact that this calibration was performed using data from a single blast may therefore contribute to the high value obtained. Future work incorporating multiple blasts with varied blast designs will be necessary to determine whether this value reflects a genuine sitespecific characteristic or a case of localized overfitting.

From a practical perspective, the choice between the three models depends on the trade‑off between accuracy and implementation effort. The original Kuz‑Ram model requires only basic blast parameters and is readily applicable for first estimates. The Shifted Kuz‑Ram model adds a simple correction factor but remains easy to implement. In contrast, the Extended Kuz‑Ram model, while offering the highest accuracy after calibration, requires detailed timing data and a calibration procedure, which may be justified for large‑scale operations where fragmentation optimization yields significant downstream benefits

These results align with other studies that have emphasized the importance of calibrating empirical models ^{19, 20}. They also show that the Diack basalt, although massive, presents a certain heterogeneity requiring fine-tuning of parameters.

From a practical standpoint for blasting operations in this type of rock, the use of the calibrated Extended model is recommended. The calibration procedure can be performed from a few test blasts analyzed by WipFrag, as was done here. The shifted model, being simpler, constitutes an acceptable alternative when timing data are unavailable or calibration is not possible.

However, this study has certain limitations. It only covered a single site and a limited number of blasts. Additional investigations in other areas of the quarry and with different blast patterns would allow validating the robustness of the calibrated coefficients. Furthermore, WipFrag image analysis, although widely used, involves uncertainties related to segmentation and image representativeness ^{13, 14}. Complementary measurements by sieving, although difficult on a large scale, could strengthen the reliability of the reference data.

Finally, the lack of consideration for the extreme fines distribution in Rosin-Rammler models could be mitigated by using more flexible functions like Swebrec ⁹, but this is beyond the scope of this study focused on Cunningham models.

5. Conclusion

This study evaluated three models from the Kuz-Ram family for predicting blast fragmentation at the Diack basalt quarry in Senegal. The results show that:

• The original Cunningham model ⁷ gives a correct global estimate but underestimates the mid‑size range (Figure 4).

• The Shifted Kuz-Ram model ⁹ significantly improves accuracy by correcting the confusion between mean and median size (Figure 5).

• The Extended Kuz-Ram model ¹⁰, after calibration of coefficients C(A) and C(n), offers the best performance with an R² of 0.995 and an RMSE of 2.76% (Figure 6).

These results confirm the necessity of adapting empirical models to local conditions through calibration with field data. For the Diack basalt, the calibrated Extended model constitutes the most reliable tool for optimizing blast parameters and improving operational profitability.

Future perspectives include extending this approach to other lithologies and integrating machine learning techniques to refine predictions. Coupling with numerical models (DEM, FEM) could also allow a better understanding of fragmentation mechanisms and overcome the limitations of purely empirical approaches.
