Study of Magnetic Interactions in Dy3+ Substituted Zn0.5Mg0.5DyxFe2-xO4 Ferrites

Sahi Ram , Shailndra Singh
World Journal of Chemical Education. 2022, 10(2), 76-83. DOI: 10.12691/wjce-10-2-4
Received April 05, 2022; Revised May 09, 2022; Accepted May 19, 2022

Abstract

Rare earth dysprosium substituted spinel ferrites with a composition of Zn0.5Mg0.5DyxFe2-xO4 (x = 0.0, 0.02, 0.10 and 0.20) were synthesized by the solid-state reaction method. X-ray diffraction studies revealed the formation of single-phase cubic structures for all compositions. The lattice constant and crystallite size varied with increasing Dy3+ content in the Zn-Mg ferrite. 57Fe Mössbauer spectroscopic studies were carried out to determine the chemical state of iron, its occupancy and relative amount in tetrahedral (A) sites, octahedral (B) sites or both. The obtained value of relative amount of iron in the tetrahedral (A) site, octahedral (B) site or both was used to obtain the cation distribution at the tetrahedral (A) and octahedral (B) sites. The cation distribution was used to determine the cation-cation distances, cation-anion distances and inter-ionic bond angles to understand the spin interactions and the impact of Dy3+ ion substitution on magnetic interactions in substituted Zn-Mg ferrites.

1. Introduction

Ferrites are ferrimagnetic materials that exhibit spontaneous magnetization at room temperature and magnetic properties that are identical to those of ferromagnetic materials. Along with their good magnetic properties, ferrites have high electrical resistivity, low dielectric and low eddy current losses 1. Nano structured ferrites are becoming versatile assets owing to their excellent magnetic properties compared to those of bulk-sized ferrites 2.

Zn-Mg ferrite is a mixed spinel ferrite synthesized by substituting Zn into MgFe2O4. The MgFe2O4 is an inverse spinel ferrite that exhibit ferromagnetic nature. In MgFe2O4 the magnetic properties are attributed to only Fe3+ ions because the divalent Mg2+ ion is diamagnetic in nature (μB= 0). The distribution of Fe3+ in tetrahedral site constitute magnetic sublattice-A and distribution of Fe3+ in octahedral site constitutes magnetic sublattice-B. The net magnetization is due to the difference in magnetic moments of sublattice-B and sublattice-A. The substitution of Zn2+ ions in to MgFe2O4 makes a mixed spinel Zn-Mg ferrite. The Zn2+ ion has a preferred occupancy of tetrahedral (A) site 3 and occupy tetrahedral (A) site while Mg2+ ion can occupy both sites.

Many workers [4-8] 4 have studied the ZnxMg1-xFe2O4 composition (for 0 ≤ x ≤ 1.0) and reported the changes in structural and magnetic properties with increase in Zn content. All reported Zn-Mg ferrite compositions exhibit ferromagnetic behavior. Zn0.5Mg0.5Fe2O4 has been reported to have maximum magnetization value. Zn0.5Mg0.5Fe2O4 ferrite is a soft magnetic material and net magnetization contribution is due to the combined magnetic moments of magnetic sublattice-A and sublattice-B. Because the divalent ions Zn2+ and Mg2+ are diamagnetic in nature and have zero contribution to the net magnetic moment, the magnetization of sublattice-A and sublattice-B in Zn-Mg ferrite will be due to the presence of Fe3+ magnetic ions. It is clear that in Zn-Mg ferrites, the magnetization of sublattice-A and sublattice-B will also change if there is a variation in the occupancy of Fe3+ ions in the tetrahedral and octahedral sites.

Several workers 9, 10, 11 have reported that when Fe3+ ions in ferrite are substituted by rare-earth ions, there is a substantial change in the structural and magnetic properties. The magnetic properties are improved owing to the increase in the magneto crystalline anisotropy, coercivity and saturation magnetization 12, 13. The isotropic or anisotropic nature of the coercivity and saturation magnetization is in accordance to the variation in the contribution of the f-electron orbital to magnetic interaction 14. The magnetic properties of ferrites are influenced by the anti ferromagnetic super exchange interaction between adjoining Fe3+ ions. When rare earth ions substitutes Fe3+ ions in spinel ferrite, RE3+-Fe3+ interaction is induced, which modifies the intrinsic magnetic properties. In ferrites, because of larger distance between the cations, the exchange interactions are favoured by oxygen anions and are termed super exchange interactions. The super exchange interaction also plays a crucial role in the buildup of intrinsic magnetism in spinel structures. The interactions between cations via oxygen anions can be A-B and A-A or B-B interactions. In A-B interaction, all magnetic spins at the A-site are aligned in one direction and constitute magnetic sublattice-A while all magnetic spins at the B-site align in a direction opposite to the direction of the spins at the A-site and form magnetic sublattice-B, resulting in net magnetization in ferrite. The net magnetization is given by the difference in the magnetic moments of sublattice-B and sublattice-A. The super-exchange interactions in ferrites are also affected by the distances and angles between the ion pairs in spinel structure. Lakhani V. K. et. al. 15 and Kumar G. et. al, 16 reported that the magnetic interaction in substituted spinel ferrites is much more effective for certain angles and distances between the cation-cation and cation-anion ions. They showed that the distances and angles between ion pairs play a decisive role in spin interaction for certain favorable angles, and that the magnetic interaction is much more effective.

In present study, a series of Dy3+ substituted Zn0.5Mg0.5DyxFe2-xO4 (x=0.0, 0.02, 0.10 and 0.20) ferrites were synthesized and investigated by X-ray diffraction studies of their structural properties and 57Fe Mössbauer spectroscopic studies to obtain the cation distribution in tetrahedral and octahedral sites and to estimate the magnetic interactions in Dy3+ substituted Zn0.5Mg0.5Fe2O4 ferrites.

2. Experimental

The rare earth Dy3+ ions substituted Zn-Mg ferrite with compositions Zn0.5Mg0.5DyxFe2-xO4 (x=0.0, 0.02, 0.10 and 0.20) were synthesized by solid state reaction method. Analytic grade metal oxides (purity 99.9%) ZnO, MgO, Dy2O and Fe2O3 were weighed in stochiometric proportion and mixed thoroughly in a liquid medium. The mixture is then calcinated at 600°C to obtain fine homogeneous sample. The calcinated mixture is finally sintered at 1180°C for 11 hours. The sintered material was kept for cooling down at room temperature before using it for characterizations. The scanning electron micrographs were taken to confirm the homogeneity of the samples. For X-ray studies, the PANalytical X’pert Pro MPD diffractometer using Cu-Kα radiation was used to collect the x-ray diffraction patterns at 2° per minute scanning rate from 10° to 80° range of 2θ. The indexing and refinement of all peaks was done using “FullProf programme 17.

Mössbauer spectra were recorded at room temperature (300K) with a conventional constant acceleration spectrometer using a 10 mCi 57CO source embedded in Rhodium matrix. Details of the experimental set-up are similar as reported earlier by Nigam et. al. 18. All spectra showing superposition of quadrupole doublets were computer fitted to resolve them using a least square routine computer program written by Meerwall 19 by assuming each spectrum to be sum of Lorentzians functions. During the curve fitting, the width and intensity of the two halves of a quadrupole doublet were constrained to be equal. The quality of the fit was judged from the value of χ2 which was obtained close to 1.0 per degree of freedom in most of the cases. However, a deviation in the value of χ2 has been accepted in some occasion when iterations did not improve the value of χ2. The isomer shift (IS) value is reported with respect to the spectrum of standard iron foil of 25 μm thickness. Solid lines in the spectra reported here represent computer fitted curve and dots represent the experimental points.

3. Results and Discussion

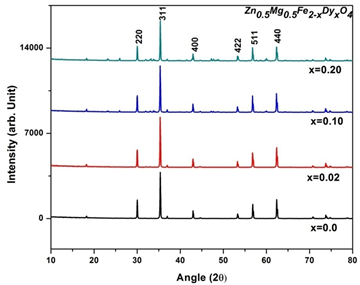

The x-ray diffraction patterns obtained for Dy3+ ions substituted Zn-Mg ferrite with compositions Zn0.5Mg0.5DyxFe2-xO4 (x=0.0, 0.02, 0.10 and 0.20) are displayed in Figure 1. The peaks indexed as (220), (311), (400), (422), (511) and (440) matches with (JCPDS card number 00-008-0234) to confirm the formation of single phase cubic spinel structure in all samples. In sample with x ≤ 0.02, the presence of single phase cubic structure indicates the partial incorporation of Dy3+ ions into spinel structure. In sample with x > 0.02 some additional peaks corresponding to secondary phase DyFeO3 are also present along with regular peaks of spinel structure 20. For higher concentration of Dy3+ ions, the presence of secondary phase at grain boundary is expected because the larger ionic radii Dy3+ ions has preferential occupancy to the octahedral site 21. This secondary phase tends to induce lattice distortion either due to the compression caused by discrepancy in thermal expansion coefficient between bulk and inter-granular material or due to the mismatch in grain and boundary phases. The lattice constant ‘a’ was calculated by using the relation where (hkl) is the index of the XRD reflection peak and ‘d’ is the inter-planar spacing. The crystallite size ‘D’ of the samples was calculated as per the Debye-Scherrer equation 22.

Where λ is x-ray wavelength of Cu-Kα radiation (1.54 Å), β is the full width at half maximum of (311) peak and θ is diffraction angle. The x-ray parameters obtained in present study are listed in Table 1.

The average crystallite size was observed in the range 53.2 nm to 51 nm. This decrease in crystallite size with increasing concentration of Dy substitution is expected because larger ionic radii Dy3+ ion (0.91 Å) preferentially occupies the octahedral site and may reside partially at the grain boundary and cause pressure on the grain resulting to obstruction of the growth of crystal 23.

Typical scanning electron micrographs displayed in Figure 2 indicate well packed compact arrangement of homogenous and agglomerated particles forming uneven sized crystallite like grains. The agglomeration of particles is visible in all compositions. In case of pure composition (x=0), the agglomeration of particles is due to the magnetic interaction among the particles 24. In Dy substituted compositions, the agglomeration is due to magnetic interaction between particles as well as also due to the accumulation of some Dy3+ ions at grain boundary without replacing Fe3+ ions in octahedral site 25. This type of agglomeration results in restriction of crystal growth and hence reduction in crystallite size with increasing Dy content as obtained in XRD studies.

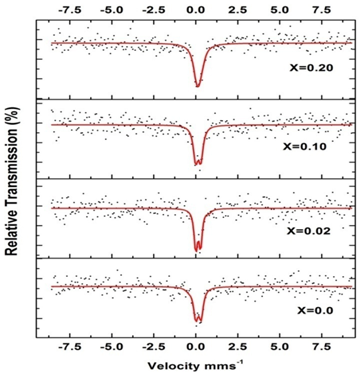

The Mössbauer spectra of all synthesized samples recorded at room temperature are displayed in Figure 3. The concentration of Dy3+ substitutions is mentioned in the figure itself. The Mössbauer parameters obtained by the least square fitting of Lorentzians lines are given in Table 2. The isomer shift (IS) value is reported with respect to the spectrum of standard iron foil of 25μm thickness. In present study, the Isomer shift values are obtained ranging from 0.1 mm/s to 0.4 mm/s which attributes to iron in Fe3+ state 26, 27. The assignment of iron in Fe3+state occupying either tetrahedral site or octahedral site is done in accordance with earlier reported work 28, 29. The doublet with higher value of isomer shift is assigned to iron in Fe3+ state occupying the tetrahedral site (A) while the doublet with smaller value of isomer shift is assigned to iron in Fe3+ state occupying the octahedral site (B).

From Table 2, it can be seen that in pure sample (x=0.0) the isomer shift value for site A is greater than that of site B. In a similar study on Zn-Mg ferrites, Wang J. et. Al. 28 has also reported this trend of larger isomer shift value of site-A in comparison to that of site-B. The samples with Dy concentration x=0.10 exhibits only one central doublet which is attributed to the magnetically isolated Fe3+ ion and does not show magnetic ordering due to surrounding non magnetic particles 30.

The amount of iron in Fe3+ state occupying the tetrahedral site (A) iron in Fe3+ state occupying octahedral site (B) can be estimated by the relative area of the two quadruple doublets 31. In pure sample (x=0.0), the distribution of Fe3+ ions into A-site and B-site clearly indicate the formation of inverse spinel structure. This formation of inverse spinel Zn-Mg ferrite (x=0) is obvious due to the tendency of divalent ions Zn2+ having preferential occupancy to A-site while Mg2+ having preferential occupancy to B-site 32, 33.

From Table 2, it can also be seen that for increasing concentration of Dy substitution, the relative amount of iron in tetrahedral site reduces while in octahedral site it increases. This clearly reflects the migration of Fe3+ ions towards octahedral site. It is obvious that the Fe3+ ions migrated from tetrahedral site to octahedral site will replace the Mg2+ ions from octahedral site because Dy3+ ions due to their larger ionic radii (0.91 Å) has preferential occupancy only to octahedral site.

In composition with x = 0.10, the Mössbauer spectrum exhibit only one central doublet corresponding to Fe3+ ion only in B-site. It reflects the complete migration of Fe3+ from tetrahedral site to octahedral site by replacing Mg2+ so that the tetrahedral site now has only divalent ions Zn2+ and Mg2+ while the octahedral site has only trivalent ions Fe3+ and Dy3+. As earlier reported by Suwalka et. al. 31, the cation distribution of tetrahedral site and octahedral site in all compositions is estimated from Mössbauer spectra and is given in Table 3.

Using the cation distribution given in Table 3, the average ionic radii at the tetrahedral site (rA) and at octahedral sites (rB) in all samples can be calculated by following relations 34

(1)
(2)

Where CA and CB are the ionic concentration in A-site and B-sites respectively, and are the radii of Zn2+, Mg2+, Dy3+ and Fe3+ respectively.

  • Table 4. Lattice constant (aexp), mean ionic radius of tetrahedral site (rA) and octahedral site (rB), theoretical value of Lattice constant (ath) and oxygen positional parameter (u) in Zn0.5Mg0.5DyxFe2-xO4 (x = 0, 0.02, 0.10 and 0.20) ferrites

Using the values of radii of tetrahedral A-site (rA) and mean radii of octahedral B-site (rB), the theoretical values of lattice constant ath for all samples can be obtained by the relation 35

(3)

here R0 is the radius of oxygen ion (R0 = 1.32 Å).

The calculated values of mean ionic radii of tetrahedral A-site (rA) , mean ionic radii of octahedral B-site ( rB) and calculated value of lattice constant ‘ ath are listed in Table 4.

It is seen from Table 4 that in the sample (x=0) the mean ionic radii of tetrahedral site is more that the mean ionic radii of octahedral site. It is obvious because the tetrahedral site is occupied by Zn2+ having ionic radius (0.74 Å) larger than the ionic radius of Mg2+ ions (0.66 Å) which occupy octahedral site. When Dy3+ ions are substituted with increasing concentration, the mean ionic radii of octahedral site increases but mean ionic radii of tetrahedral site show subtle change and remain almost unchanged. The increase in mean ionic radii is obviously due to the large ionic radii (0.91 Å) of Dy3+ ions 36, 37. The Dy3+ ions have preferred occupancy to octahedral site because of larger interstices space in octahedral site. The Dy3+ ion replaces Fe3+ ions in octahedral site, moreover from cation distribution given in Table 3, it is clear that the Fe3+ ions replaces Mg2+ ions from octahedral site and cause the migration of Mg2+ ions to tetrahedral site. The ions involved in the compositions are having different ionic radii can cause a distortion in crystal symmetry. The distortion is also due to the internal stress by large ionic radii Dy3+ ions entering in to the octahedral site. The large variation in theoretical value of lattice constant ‘ath’ in comparison to the experimentally calculated value ‘aexp’ is attributed to this distortion in crystal symmetry.

Furthermore, as the involved ions have different ionic radii, therefore to accommodate the incumbent ions in to either tetrahedral site or octahedral site, the oxygen anion may suffer a shifting from their actual position. So in spinel structure, the oxygen anion may or may not be present at their exact location in the FCC structure. The variation in position of oxygen anions is described in term of oxygen positional parameter ‘u’.

The oxygen positional parameter value for center of symmetry at considering the origin at B-site is calculated by the relation 38

(4)

Where the average bond length and are calculated using the mean ionic radii of A-site (rA) and mean ionic radii of B-site (rB) obtained from cation distribution. The RO corresponds to the ionic radii of oxygen anion (1.32 Å).

The oxygen positional parameter value for center of symmetry at considering the origin at A-site is calculated by the relation 34

(5)
(6)
(7)

From Table 4, it can be seen that the three values of of each individual composition are almost same inspite of being calculated by different formulas. For a FCC structure, the ideal value of for origin at B-site is and the ideal value of for origin at A-site is Å.

Generally the ferrites show a deviation from this ideal value of oxygen positional parameter ‘u’ and attain a larger value of ‘u’ in comparison to the ideal value 39, 40. The deviation in ‘u’ value is also obtained in present study. From Table 4, it can be observed that when Dy is substituted into Zn-Mg ferrite, the oxygen positional parameter value is slightly larger in value. However, for further increase in Dy content, the value of ‘u’ further decreases. The decrease in value of ‘u’ indicates that the anions at B-site are moving away from cations at octahedral interstices due to the expansion of the octahedral interstices. The displacement of oxygen ions is in such a way that in A-B interaction the distances between A and O ions are unchanged while the distance between B and O ions increases. Using the value of oxygen positional parameter ‘u’ and experimental value of lattice constant ‘a’ for each composition, the bond lengths on tetrahedral site (dAX), the bond length on octahedral site (dBX), the length of tetrahedral shared edge (dAXE), the length of octahedral shared edge (dBX) and the unshared octahedral edge length (dBXEU) are calculated by putting in the relations 41

(7)
(8)
(9)
(10)
(11)

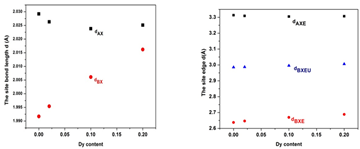

The calculated values of bond lengths, shared edge lengths and unshared octahedral edge length are listed in Table 5. The variations of dAX and dBX with increasing Dy content is displayed in Figure 4(a) and the variation of dAXE, dBXE, and dBXEU with increasing content of Dy are displayed in Figure 4(b).

  • Table 5. Bond lengths at tetrahedral site (dAX), bond length at octahedral site (dBX), shared tetrahedral edge length (dAXE), shared octahedral edge length (dBXE) and unshared octahedral edge (dBXEU) in Zn0.5Mg0.5DyxFe2-xO4 (x = 0, 0.02, 0.10 and 0.20) ferrites

With the substitution of Dy3+ ion content, the bond length and edge length on tetrahedral site does not change but the bond length and edge length on octahedral site increases. The unshared edge length on octahedral site also remain unchanged but slightly increases at higher concentration of Dy3+ ions substitution (x=0.10 and 0.20). This observed trend of bond lengths and edge lengths is in conformity with the observed ionic radii of tetrahedral site and octahedral site indicating the expansion in octahedral site.

The inter-ionic distances the cation-cation (Me-Me) (b, c, d, e, and f) and between cation-anion (Me-O) (p, q, r and s) has been calculated using the experimental value of lattice constant (aexp) and oxygen positional parameter in the following relations 41

Using the values of inter-ionic distance between cation-cation and cation-anion, the bond angles are calculated by following relations 15

The calculated values of inter-ionic distances between cation-cation, cation-anion and bond angles are listed in Table 6. It is noted that with increasing Dy content the inter-ionic distance between cation-cation and cation-anion distance also increases slowly (except q and r). Since the inter-ionic distances are related to the lattice constant, the small increase in inter-ionic distance with Dy content (x) is in agreement with small increase in lattice constant ‘aexp’. In composition with larger Dy content (x=0.20), the bond length and shared edge length of tetrahedral site is slightly increases. This distinct pattern is attributed to large sized Dy3+ ions accumulated at the boundary and cause partial stretching of tetrahedral site away from octahedral site.

  • Table 6. Cation-cation distances (b, c, d, e, f), cation-anion distances (p, q, r, s) and inter-ionic bond angles obtained in Zn0.5Mg0.5DyxFe2-xO4 (x = 0, 0.02, 0.10 and 0.20) ferrites

The bond angles θ1, θ2 and θ5 corresponds to super exchange A-B and A-A interaction while the bond angle θ3 and θ4 corresponds to B-B interactions. The strength of interactions is directly proportional to the bond angle and inversely proportional to the bond length. With increase in Dy3+ ion content, the angles θ1, θ2 and θ5 increases and the angles θ3 and θ4 decrease. This increase in angles θ1, θ2 and θ5 correspond to the strengthening of super exchange A-B interactions. The decrease in angles θ3 and θ4 indicates the weakening in B-B interaction. However, from Table 5 and Figure 4, it is noted that with increasing Dy3+ content the bond length and shared edge length at octahedral site increases. This increase in bond length weakens the A-B interaction despite the increase in bond angles.

4. Conclusion

The substitution of Dy3+ ions in Zn-Mg ferrite done by solid state reaction method resulted into the synthesis of Zn0.5Mg0.5DyxFe2-xO4 ( x = 0, 0.02, 0.10 and 0.20) ferrites. With the substitution of larger ionic radii Dy3+ ion in to B-site of Zn-Mg ferrite, the structural properties are found to change with increase in Dy content. The substitution of Dy3+ ions in Zn-Mg ferrite has also changed the cation distribution of tetrahedral site and octahedral site. The cation distribution changes drastically with increase in Dy content. Furthermore, with the inclusion of Dy3+ ion in increasing concentration, the variation of bond angles indicates the strengthening of super exchange interaction but the increase in bond length of octahedral site and the increasing trend of cation-cation inter-ionic distances contradicts. It is inferred that in Dy3+ substituted Zn-Mg ferrites, magnetic properties are expected to improve. In compositions with large concentration of Dy substitution, a hindrance to magnetic properties is also expected. The magnetic interactions in Dy-substituted Zn-Mg ferrite indicate change in microscopic magnetic properties

Acknowledgements

Authors are thankful to Department of Physics, Jai Narain Vyas University Jodhpur for providing the research facilities to carry out x-ray diffraction study and Mössbauer Spectroscopic study. One of the authors Shailndra Singh is thankful to University Grants Commission (UGC), New Delhi for providing the UGC-BSR doctoral fellowship.

Declaration

The manuscript has been prepared through contributions of all authors. All authors have given approval to the final version of the manuscript. All authors declare that they have no conflicts of interest.
