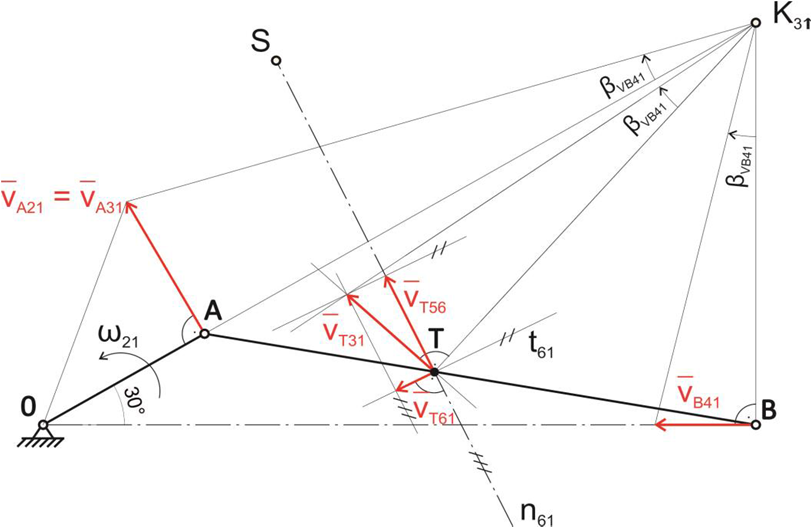

Figure 12. Graphical solution of velocity of the point A, B and T

From

Kinematical Analysis of Crank Slider Mechanism with Graphical Method and by Computer Simulation

Hroncová Darina, Frankovský Peter, Bettes Gabriel

American Journal of Mechanical Engineering. 2016, 4(7), 329-343 doi:10.12691/ajme-4-7-18
