Abstract

Valinomycin, an antibiotic ionophore (ion carrier), is a functional analog of the cyclic hexaether [18] crown-6 (18C6). Both valinomycin and 18C6 molecules form lipophilic complexes with alkali metal ions. Hence, upon addition of valinomycin or 18C6, alkali metal salts become soluble in non-polar organic solvents. The ability to complex cations allows valinomycin molecules to transport these ions across cell membranes. Since 18C6 molecules bind alkali metal cations in a similar way, by wrapping them in a “greasy coat”, cell transport processes by valinomycin can be imitated using the more cost-efficient and less hazardous 18C6. In a simple test tube experiment, cell conditions are mimicked by means of a triphasic system consisting of an aqueous magnesium sulfate (MgSO₄) solution (bottom phase) and an aqueous potassium permanganate (KMnO₄) solution (top phase) which are separated by a methyl benzoate phase serving as a liquid membrane. If a solution of 18C6 is injected into the methyl benzoate phase of this “vertical Pressman cell”, a salt transfer from the upper aqueous phase to the bottom phase can be observed, modelling the effect of valinomycin in living cells. Appropriate simplifications for use in schools are discussed and animations are provided to illustrate the ionophore-facilitated cell transport.

1. Introduction

The ability of macrocyclic polyethers with the formula (-CH₂-CH₂-O-)_n to selectively bind alkali metal cations in their ring interior (cavity ¹) was first recognized by Charles Pedersen in the early 1960s ²: More or less accidentally ³, he synthesized the cyclic hexaether 1 (see Figure 1), in the presence of which sodium hydroxide (NaOH) could be dissolved in methanol. Pedersen recognized that a sodium ion can be bound in the molecule's cavity, i.e. that it can form the complex 1⋅Na⁺ (see Figure 1) ²:

“It seemed clear to me now that the sodium ion has fallen into the hole in the centre of the molecule and was held there by the electrostatic attraction between its positive charge and the negative dipolar charge on the six oxygen atoms symmetrically arranged around it in the polyether ring.”[2, p. 1024]

Later, it was discovered that also other alkali and alkaline earth metal cations are complexed by 1 and other cyclic polyethers. The stability of the corresponding complexes is controlled, among other factors, by the size ratio of the cavity to the ion diameter: cations that fit particularly well into the crown cavity are bound strongest, which allows selective cation binding by crown ether molecules ^{2, 4}.

Due to the similarity of the polyethers' molecular models to a royal crown (see compound 2, Figure 1, cf. ⁵), Pedersen referred to this new class of compounds as crowns ². Later on, these compounds were named crown ethers to clarify the chemical class ^{6, 7}. Pedersen developed a simple nomenclature system in which the number of ring atoms is given first in square brackets, followed by the name crown and finally the number of oxygen atoms. Accordingly, compound 2 is named ¹⁸ crown-6 (18C6). Additional substituents are placed in front of the macrocycle's name, as the example of dibenzo ¹⁸ crown-6 (DB18C6) (1) illustrates (In this example, two additional benzene rings are formally fused to the 18C6 molecule). Pedersen's nomenclature has become established among experts to this day due to its simplicity ^{2, 4, 6}.

The discovery of the complexation of alkali metal cations by crown ethers was of particular significance: Until the early 1960s, no (synthetic) compounds were known that could bind the “hitherto recalcitrant alkali cations ².“ (In fact, crown ethers and crown ether-like macrocyclic polyethers were already known before Pedersen’s discovery. However, their potential to bind alkali metal cations was recognized by Pedersen for the first time ^{2, 3}).

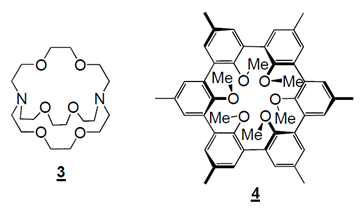

Donald Cram and Jean-Marie Lehn continued Pedersen's work and created further macrocyclic polyethers such as the so-called cryptands, e.g. 3, and the spherands, e.g. 4, which could even better complex alkali metal cations [5] [8]. In 1987, Pedersen, Cram and Lehn were awarded the Nobel Prize in Chemistry “for their development and use of molecules with structure-specific interactions of high selectivity ⁹.” The Nobel Prize is said to mark (more or less) the beginning of supramolecular chemistry ^{3, 7}, which is the chemistry beyond (lat. supra) the molecule ^{7, 10}, dealing with interactions between molecules and/ or ions ¹¹.

Supramolecular interactions are found in abundance in nature, e.g. in enzyme – substrate complexes, antigen–antibody interactions and ion carrier–ion interactions ¹⁰. Usually, the larger molecule that binds a smaller molecular or ionic component is referred to as the “host” and the smaller one as the “guest”. Accordingly, supramolecular aggregates (“supermolecules”) are often called “host – guest complexes“ ^{10, 11}.

A well-studied ionophore (ion carrier) is valinomycin [12]. It was first isolated in 1955 from a strain of actinomycete belonging to the species Streptomyces fulvissimus. Valinomycin is a natural antibiotic that is, for example, effective against mycobacterium tuberculosis, the bacterium that causes tuberculosis [13].

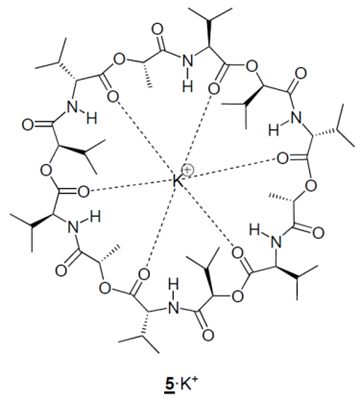

In 1967, Pressman et al. recognized that valinomycin molecules (5) are capable of complexing and transporting alkali metal cations across cell membranes as lipophilic and therefore fat-soluble complexes. Due to this property, Pressman et al. called valinomycin and related compounds ionophores (“ion carriers”) ^{14, 15, 16}. In fact, this very property makes valinomycin an antibiotic: Valinomycin molecules bind biologically relevant potassium ions in their hydrophilic cavity (5⋅K⁺) with the methyl and isopropyl groups attached to the cycle directed outwards ^{16, 17}.

The resulting hydrophobic surface of the valinomycin molecule lipophilizes the enclosed cation, i.e. makes it fat-soluble ¹⁶. Corresponding lipophilic complexes are then able to penetrate the lipid membrane of a variety of different cells such as bacterial, virus and mammalian cells ^{12, 16}.

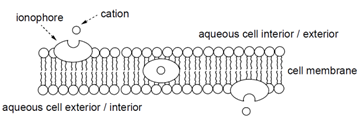

This way, potassium ions can be transported from the aqueous cell exterior through the cell membrane and be released (“decomplexation”) into the aqueous cell interior increasing the potassium ion concentration within the cell. Conversely, potassium ions can be transported out of the aqueous cell interior and reduce the potassium concentration inside the cell (usually in bacterial cells). Either way, the ion transport disrupts the cell's sensitive potassium ion balance, which ultimately leads to cell death ^{12, 16, 18}. The ionophore-facilitated cation transport processes are illustrated in Figure 4 (cf. ¹⁶).

2. Biomimetic Imitation of Ionophores using Crown Ethers

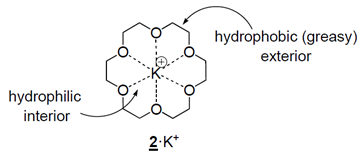

The similarity between crown ethers and natural ionophores such as valinomycin was quickly recognized ^{7, 19}: Just like the natural ionophores, crown ethers bind alkali metal cations in their hydrophilic interior. With the hydrophobic ethylene groups (-CH₂-CH₂-) facing outwards lipophilic complexes are formed (cf. Figure 5) ¹.

The resemblance between 18C6 and valinomycin becomes particularly evident when examining the crystal structure of the valinomycin molecule – potassium ion complex: Figure 6 shows a top view of the crystal structure of 5⋅K⁺, taken from ²⁰.

Pedersen's discovery of crown ethers was of particular importance for biology ^{2, 19}, as the mode of action of valinomycin and other related natural antibiotic ionophores could now be imitated using crown ethers as model compounds and thus be better understood ²¹. The scientific community drew great benefit from this, and chemistry education also recognized the potential of imitating cell membrane transport processes using crown ethers, especially 18C6 and DB18C6 ²².

Different cations (Mⁿ⁺) are transported through cell membranes to different degrees (i.e. selectively) by valinomycin or ionophore molecules (ip) in general ¹⁴. How effective the cation transport ultimately is, depends in particular on the equilibrium constants K of the complexation within the cell membrane (equation 1) ²³.

(1)

As noted by Pressman ^{14, 24}, in the ionophore-facilitated extraction of alkali metal salts from water into an organic phase, the same selectivity sequences can generally be observed as in ionophore-facilitated alkali ion transport through mitochondrial cell membranes. Thus, in order to make predictions about how well various ionophores bind alkali metal cations in biological membranes and transport them across them, simple metal salt liquid-liquid extraction experiments can be carried out with the corresponding ionophores. In these experiments, the organic phase serves as a model lipid membrane ²⁴.

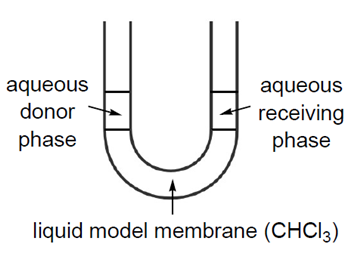

In 1970, Ashton and Steinrauf ²⁵ developed an experiment using a liquid membrane that illustrates the ionophore-facilitated transport of cations from the aqueous cell exterior into the aqueous cell interior (or vice versa) particularly well. The corresponding experimental setup involved a U-tube containing chloroform (CHCl₃) as a model membrane in which the ionophores to be studied were dissolved (Figure 7). This chloroform solution was layered on one side of the U-tube with an aqueous alkali metal salt solution ("donor phase") and on the other with water ("receiving phase"). Once the alkali metal cations were bound by the ionophore molecules, they became soluble in the chloroform phase. Due to charge compensation, the corresponding anions (A^-) remained associated with the positive ionophore complexes () and followed them through the liquid phase. Over time, the salts were thus transported from the donor phase to the receiving phase until the concentration difference was compensated ^{25, 26}. The reader may compare this setup (Figure 4) with the cation transport processes in living cell shown in Figure 7.

If in the experimental setup of Ashton und Steinrauf metal picrates (salts of the toxic and in dry form explosive picric acid, i.e. 2,4,6-trinitrophenol (TNP)) are used that form yellow solutions, the process can be observed with the naked eye. In order to accelerate the process of ion transport, Ashton and Steinrauf stirred the chloroform phase continuously ²⁵.

The driving force behind the transfer of a binary salt MA (= cation M⁺, anion A^-) from one side of the U-tube to the other is the concentration gradient or, to be more specifically, the difference in chemical potential of the salts (µ_MA) in the aqueous phases connected by the organic phase at the start of the experiment (equation 2):

(2)

The transport takes place until a so-called Donnan equilibrium is established in which the chemical potentials (i.e. the concentrations c_MA) are the same on both sides. In this case, equation (3) applies ^{25, 27}.

(3)

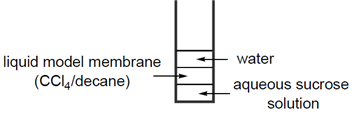

Another way to generate a system with a liquid membrane separated by two aqueous phases in a vertical setup was developed by Pressman and De Guzmann in 1974 (Figure 8) ²⁸. They placed an aqueous 30 % sucrose solution in a flat-bottomed tube, overlaid it with a binary solvent mixture of CCl₄ (39 vol.%) and decane (61 vol.%) containing the ionophore to be studied, and overlaid this solution with water. The sucrose in the bottom aqueous phase only serves to increase the density of this solution so that it can be easily overlaid with the CCl₄/decane mixture, which in turn can be easily overlaid with water due its lower density. Upon the addition of a suitable alkali metal salt – they used radioactively labelled metal cations – a salt transport through the liquid membrane was observed. For more details, see ²⁸.

Not only natural ionophores can be used in these types of experiments. Synthetic alkali metal cation binders such as cryptands ²⁹ or crown ethers ³⁰ also transport suitable salts through model liquid membranes. Today, setups consisting of a liquid membrane separated by two aqueous phases are generally termed Pressman cells ²⁶.

Due to its antibiotic properties, valinomycin is toxic and also relatively expensive ³¹. By contrast, 18C6 or DB18C6 are neither harmful nor toxic, but have similar membrane transport properties as natural ionophores ²⁶. Please note that crown ethers were regarded as toxic for a long time. However, toxicological studies have shown that toxicity issues are largely a myth ³. Furthermore, crown ethers are relatively inexpensive and can therefore serve as valinomycin mimics in school teaching.

In 1980, Monden et al. ¹⁷ adopted the U-tube experiment developed by Ashton and Steinrauf as a school experiment to model the permeation of ions through cell membranes. They used chloroform as a liquid membrane and 18C6 as the ionophore instead of valinomycin. In this way, they showed that both potassium picrate and potassium permanganate (KMnO₄) could be transported through the chloroform phase from one side of the U-tube to the other.

In 2013, Friedrich and Oetken replaced chloroform with the more school-suitable dichloromethane (CH₂Cl₂, DCM). They also used the U-tube setup of Ashton and Steinrauf to demonstrate the transport of KMnO₄, potassium hydrogen chromate (KHCrO₄), potassium iodide (KI) and sodium permanganate (NaMnO₄) with the help of 18C6 or ¹⁵crown-5 (15C5) ³².

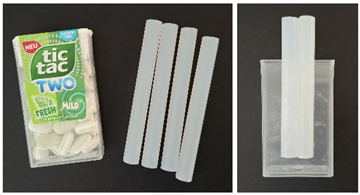

We have developed a low-cost U-tube in a TicTac® box to demonstrate ionophore-facilitated permeation of cations across cell membranes ³³. To turn a TicTac® box into a U-tube, an array of 2x2 hot glue sticks (diameter 11 cm) glued together was inserted into the box in such a way that a square U-shaped gap was created (see Figure 9). Since the glue stick array was a little too large for the TicTac® box, it bulged the box slightly, thus ensuring that the construction was tight. When this “Pressman cell” was filled with a solvent, it could therefore not get between the glue sticks and the TicTac® wall.

Instead of DCM, which is harmful to health, we used benzoic acid methyl ester (“methyl benzoate”) as a liquid membrane. This solvent is used in personal care products such as shampoo and cosmetics both due to its sweet, floral odor and its preservative properties ³⁴, and can therefore be used in schools without any problems. Moreover, methyl benzoate (ϱ = 1.08 gml^-1) has a higher density than water and can therefore be easily overlaid with water in the same way as chlorinated solvents. After adding methyl benzoate to this low-cost U-tube, a small magnetic rod was inserted to stir the organic phase. One arm of the cell was then filled with a 0.1 M aqueous KMnO₄ solution and the other with water. If 1 mL of a 0.4 M solution of 18C6 in methyl benzoate is injected into the methyl benzoate phase of this low-cost U-tube, a transfer of KMnO₄ from one aqueous phase to the other was observed within 1-2 minutes ³³. By contrast, experiments in conventional U-tubes typically take up to 30 minutes ³².

Altogether, the proposed experimental setup in a TicTac® box meets the requirements of chemistry education to work with small quantities in order to reduce hazards and to replace expensive (glass) devices with other devices such as disposable syringes – this often makes it possible to use this kind of setups in student experiments ³⁵. The short duration of the experiment also makes the “TicTac® U-tube” particularly suitable for school applications. Overall, the experiment proposed fulfils all the ‘low criteria’ for a school experiment introduced by Banerji, namely that it is cost-effective (low cost), involves little risk (low risk), can be implemented quickly (low time) and without high technical requirements (low tech) ^{33, 36}.

As described in section 2.1, model experiments on ionophore-mediated cation transport across cell membranes have always relied on the use of a U-tube or, recently, on the use of a low-cost U-tube from a TicTac® box for the use in schools. As will be shown below, following the example of Pressman's vertical setup, ion transport can also be modelled in a simple test tube experiment. This completely eliminates the need to use an expensive U-tube or to build a low-cost U-tube. Importantly, the test tube experiment allows demonstrating complexation and decomplexation separately and in combination. In our previous publication ³³, solvent and crown ether were switched during this step-by-step modelling: first the complexation of potassium ions was demonstrated by dissolving KMnO₄ in anisole with 18C6, then a solution of K(DB18C6)MnO₄ in anisole underlaid with water was used to show decomplexation and finally, for the combination of both processes in a TicTac® box, 18C6 was applied to show the transport of KMnO₄ across methyl benzoate (see above). This may raise the question for learners as to why or whether the change of solvents and crown ethers are relevant. It is therefore proposed to demonstrate the transport of ions through cells in model experiments using methyl benzoate and 18C6 alone, i.e. to show both complexation and decomplexation using only these two components besides KMnO₄.

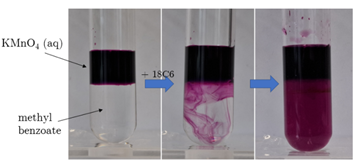

The first step in both the (natural) ionophore-facilitated cation transport across biomembranes and the crown ether-facilitated cation transport across liquid model membranes is the complexation of the cation. To demonstrate this step, 2.5 mL of methyl benzoate (= model membrane) is overlaid with 1.5 mL of an aqueous 0.1 M KMnO₄ solution. In this way, a two-phase system is formed in which the intensively colored potassium permanganate salt remains in the aqueous phase (model for the aqueous cell exterior/ interior) due to the absence of an ionophore. Consequently, the organic phase (model for the lipid membrane) remains colorless (Figure 10, left). Using a 1 mL syringe with a needle, 0.5 mL of a freshly prepared 0.3 M solution of 18C6 in methyl benzoate is then injected into the organic phase of the two-phase system just below the phase boundary. After this addition, the methyl benzoate phase turns violet (Figure 10, middle and right) since 18C6 molecules bind potassium ions and transfer them to the organic phase. This complexation is indirectly (!) visible by the co-transport of the permanganate anions.

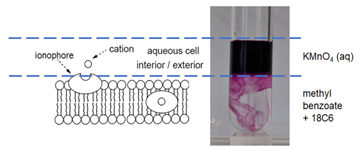

For comparison, Figure 11 shows a scheme of the corresponding biological process (see Figure 4) that the experiment aims to mimic.

The process can be visualized at the particle level as shown in Figure 12a-c.

Certain simplifications were made in the visualization. For example, only the solvation shell of the cation is shown, while the solvation of the 18C6 molecule in the organic medium is omitted. Likewise, the distribution of 18C6 between the aqueous and the methyl benzoate phase is not depicted. Furthermore, the cation and anion form a so-called ion pair in the organic phase in which the anion is bound above or below the molecular plane of the cation complex ^{1, 37}. In the two-dimensional representation in Figure 12c, the anion is instead shown directly right beside the cationic complex to indicate ion pairing. A more detailed discussion can be found in the supporting information.

For the 18C6-mediated KMnO₄ transfer, equation (4) applies:

(4)

The (power point) animation showing complex formation, from which Figures 12a-c were taken, can be downloaded free of charge from the website cited in ³⁸.

Once the ionophore has transported a metal cation across the cell membrane, decomplexation occurs at the opposite side, releasing the cation into the aqueous cell interior (or exterior) (cf. section 1.2) ^{30, 39}. To mimic this process, 2 mL of the KMnO₄/18C6 solution in methyl benzoate from the above complexation experiment is taken up with a syringe and then added to 1.5 mL of an aqueous 1 M magnesium sulfate (MgSO₄) solution. Following the example of PRESSMANN (cf. section 2.2.1), MgSO₄ is used to increase the density of the aqueous phase (ϱ(1 M MgSO₄) = 1.12 gmL^-1) so that it can be layered with the methyl benzoate solution of the 18C6/KMnO₄ mixture. As soon as the two phases are in touch, the bottom aqueous phase becomes colored due to the transfer of KMnO₄ (see Figure 13). For comparison, the representation of this step during biological membrane transport (see Figure 4) is shown in Figure 13. Accordingly, the solution of KMnO₄ in methyl benzoate with the potassium ion complexed by 18C6 represents the ionophore complex partitioned in the lipophilic cell membrane. The decomplexation step then takes place at the aqueous cell exterior (or interior).

At the particle level, the process shown in Figure 12a-c is simply reversed, with the positions of the aqueous and organic phases interchanged. Since the metal cation is reversibly bound to the crown ether ¹¹ and since the concentration of KMnO₄ is zero within the aqueous phase, the decomplexation process is initially very fast and becomes progressively slower until an equilibrium is reached ³⁰. During this process, water molecules solvate both components of the ion pair, thus mediating salt dissolution ¹¹. The reaction for the process is given by equation (5):

(5)

An animation of the decomplexation process can be downloaded free of charge from the website given in ³⁸.

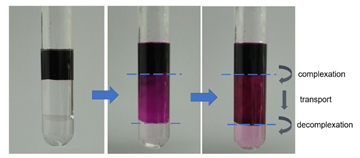

The two previous experiments are intended to prepare for the one, in which complexation and decomplexation are combined in one simple test tube experiment. This allows demonstrating the ionophore-facilitated transport of ions from the aqueous cell interior to the cell exterior (or vice versa) in its entirety in a single experiment.

For the experiment, 1.5 mL of a 1 M aqueous solution of MgSO₄ is placed in a test tube clamped in a stand, followed by adding a small stirring rod. This solution is layered with 2.5 mL of methyl benzoate and the methyl benzoate phase is then layered with 1.5 mL of a 0.1 M aqueous solution of KMnO₄ to obtain a triphasic system. No phase transfer of KMnO₄ into the organic phase is observed in the absence of a crown ether (Figure 14, left). Once 0.5 mL of a solution of 18C6 in methyl benzoate (c = 0.3 M) are added into the methyl benzoate phase with a help of a syringe, KMnO₄ is observed to pass first into the methyl benzoate phase (Figure 14, middle) and subsequently into the aqueous MgSO₄ solution (Figure 10, right). Meanwhile, the MgSO₄ solution is kept in motion by stirring in order to accelerate the phase transfer into the bottom phase. In order to minimize the time of the experiment, it can be helpful to stir the methyl benzoate phase with the needle of the syringe after the injection of the 18C6 solution. It is also possible to carefully sway the test tube back and forth a little to accelerate the phase transfer of the KMnO₄ from the methyl benzoate phase to the aqueous phase. The phase transfer of KMnO₄ from the top aqueous solution to the bottom one usually takes less than 5 minutes with freshly prepared solutions.

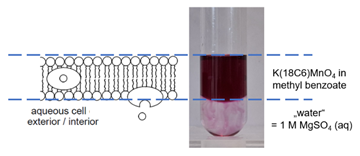

Figure 15 provides a complete schematic comparison between the test tube experiment and ionophore-facilitated cation transport across a cell membrane.

In the model experiment, the upper aqueous phase represents the aqueous cell exterior (or interior), methyl benzoate represents the cell membrane and the MgSO₄ solution the aqueous cell interior (or exterior). The reactions given in equations (4) and (5) occur simultaneously at the phase boundaries. Again, the process is represented at particle level using the simplifications made in section 2.2.1. The animation of the combined complexation-decomplexation processes in the test tube experiment can be downloaded free of charge at the link given in ³⁸.

3. Conclusion

The crown ether 18C6 mimics the structure and properties of valinomycin in that both molecules feature a cyclic arrangement of oxygen atoms around a cavity, allowing them to bind potassium ions in their hydrophilic interior so that a fat-soluble complex is obtained. In the case of valinomycin, the masked ions can penetrate the lipid membranes of cells and allow the cations to be transported from the outside into the cell interior or into the opposite direction. This disrupts the delicate potassium balance of the cells and initiates cell death, which explains the antibacterial properties of valinomycin (see section 1.2. and introduction of section 2)

A vertical Pressman cell was developed using a simple test tube experiment to mimic this membrane transport process. In this experiment, methyl benzoate acts as the model membrane, separating an aqueous MgSO₄ and an aqueous KMnO₄ phase. When the liquid membrane contains 18C6 as the model ionophore, potassium ions are transported from the top KMnO₄ phase through the liquid membrane into the MgSO₄ solution. This process is visible to the naked eye by the concomitant transport of the intensively coloured permanganate ions, which follow the potassium ions to ensure charge compensation. For teaching purposes, the individual steps of this process, namely complexation, transport, and decomplexation, are illustrated using “step by step experiments” and simplified particle-level visualizations.

Other experiments using crown ethers to demonstrate supramolecular principles are currently under development. Importantly, parallels to fundamental biological processes are emphasized in all these experiments to extract overarching principles and develop a general understanding among students. The fact that biological contexts have been shown to motivate learners of all age groups (elementary ⁴⁰, high school ^{41, 42} and university/college students ⁴³) to engage with chemistry is particularly worth mentioning here.

ACKNOWLEDGEMENTS

The Synthetic Organic Chemistry Group of Prof. Schmidt (Schmidt group, University of Potsdam) is gratefully acknowledged for providing methyl benzoate
