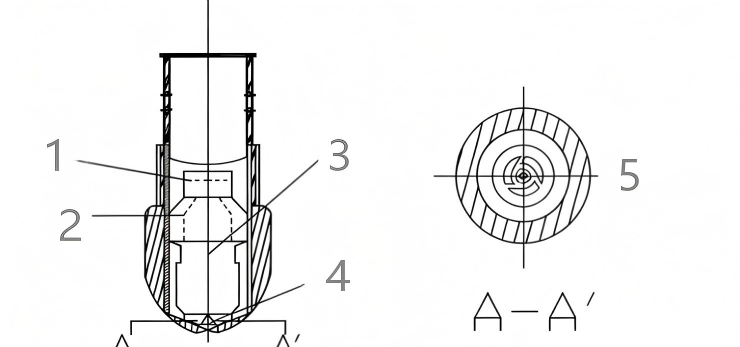

Figure 3. Internal structure of the atomizing nozzle.1.1.helical inlet,2. tangential inlet, 3.cylindrical core,4.swirl chamber, 5. bottom tangential slot

From

Wind‑Induced Drift and Uniformity Control of a Novel Atomizing Nozzle under Low Pressure Sprinkler Irrigation

Yongqiang Zhang, Xingye Zhu, Chenglin Wang, Sijia Zhu, Junping Liu

World Journal of Agricultural Research. 2026, 14(1), 18-28 doi:10.12691/wjar-14-1-3
