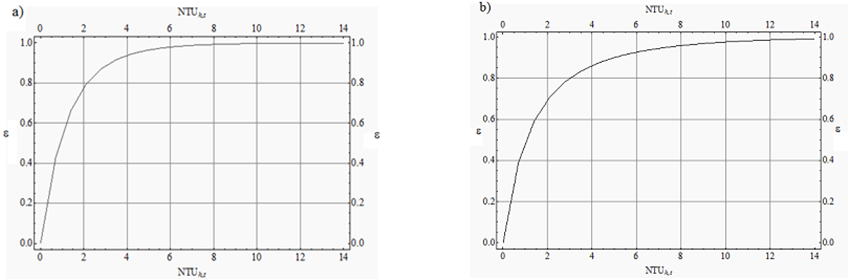

Figure 6. Effectiveness of a plate heat exchanger with five flow channels, a) C= 0.5, = 1.217, b) C = -0.999, = 1.217

From

Theoretical-Experimental Study of the Effect of the External Plates on the Thermal Performance of a Plate Heat Exchanger

Julio del Angel Soto, Martín T. Martínez G., José Luis Magaña

Chemical Engineering and Science. 2015, 3(1), 12-18 doi:10.12691/ces-3-1-3
