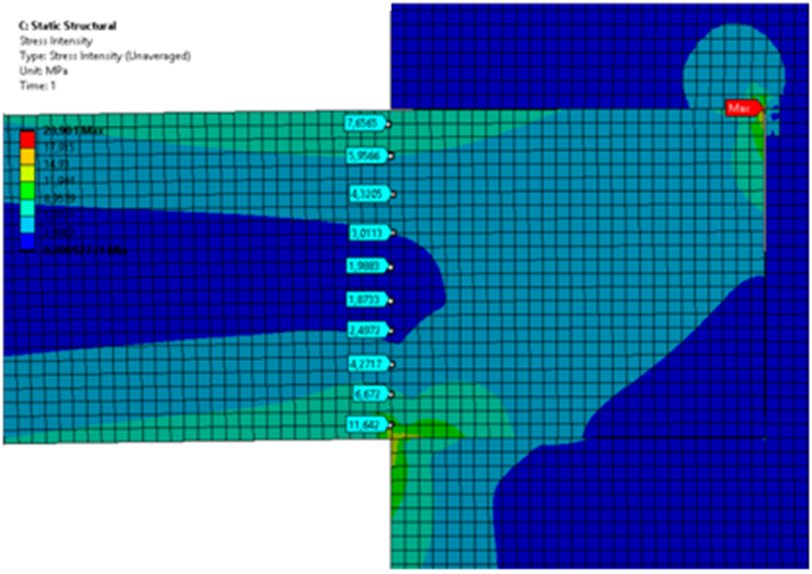

Figure 7. Guest stress field acquired by Ansys Workbench with the virtual gages on the model surface

From

The Use of Digital Image Correlation Method in Contact Mechanics

Martin Hagara, Pavol Lengvarský, Jozef Bocko, Peter Pavelka

American Journal of Mechanical Engineering. 2016, 4(7), 445-449 doi:10.12691/ajme-4-7-39
