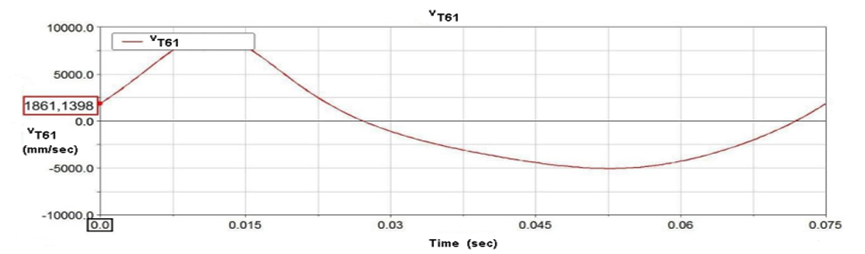

Figure 32. The graph of the velocity of the center of mass of member 6 dependent on time

From

Kinematical Analysis of Crank Slider Mechanism with Graphical Method and by Computer Simulation

Hroncová Darina, Frankovský Peter, Bettes Gabriel

American Journal of Mechanical Engineering. 2016, 4(7), 329-343 doi:10.12691/ajme-4-7-18
