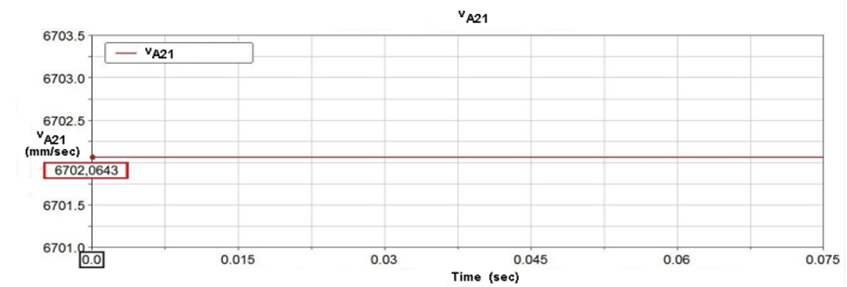

Figure 30. The graph of the velocity of the point A dependent on time

From

Kinematical Analysis of Crank Slider Mechanism with Graphical Method and by Computer Simulation

Hroncová Darina, Frankovský Peter, Bettes Gabriel

American Journal of Mechanical Engineering. 2016, 4(7), 329-343 doi:10.12691/ajme-4-7-18
