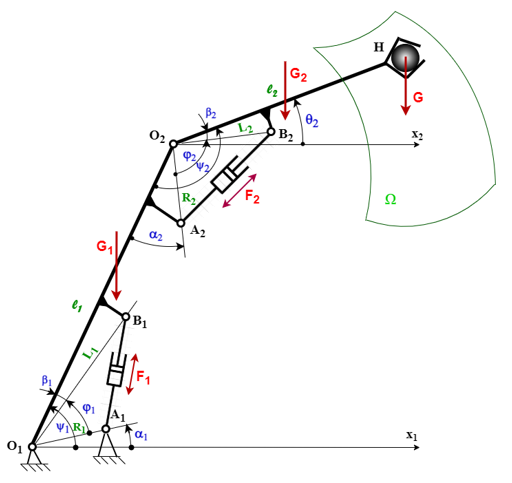

Figure 1. Basic scheme of the planar manipulator with two ISCMhc

From

On the Synthesis of Drive Mechanisms of Loading Manipulator with two Hydraulic Cylinders

Krasimir Ganchev

American Journal of Mechanical Engineering. 2023, 11(4), 161-165 doi:10.12691/ajme-11-4-5
