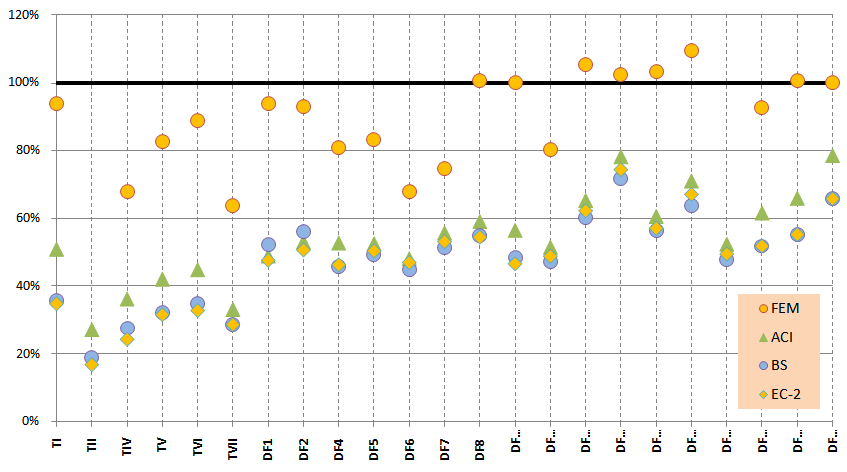

Figure 10. Comparative diagrams of ultimate force ratios calculated by FE and codes (the 100% represents the experimental)

From

Prediction of Punching Strength of Reinforced Concrete Footings by Finite Element Method

Faris R. Ahmed, Kamaran K. Hamad, Zahraa N. Rashied

American Journal of Civil Engineering and Architecture. 2017, 5(1), 8-16 doi:10.12691/ajcea-5-1-2
