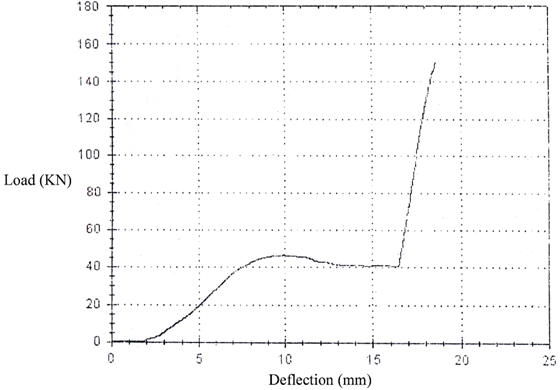

Figure 9. Load deflection curve for RC beam with vertical stirrups in shear span (a/d=0.5)

From

Effect of Stirrups Orientation on Flexural Response of RC Deep Beams

Atteshamuddin S. Sayyad, Subhash V. Patankar

American Journal of Civil Engineering and Architecture. 2013, 1(5), 107-111 doi:10.12691/ajcea-1-5-4
