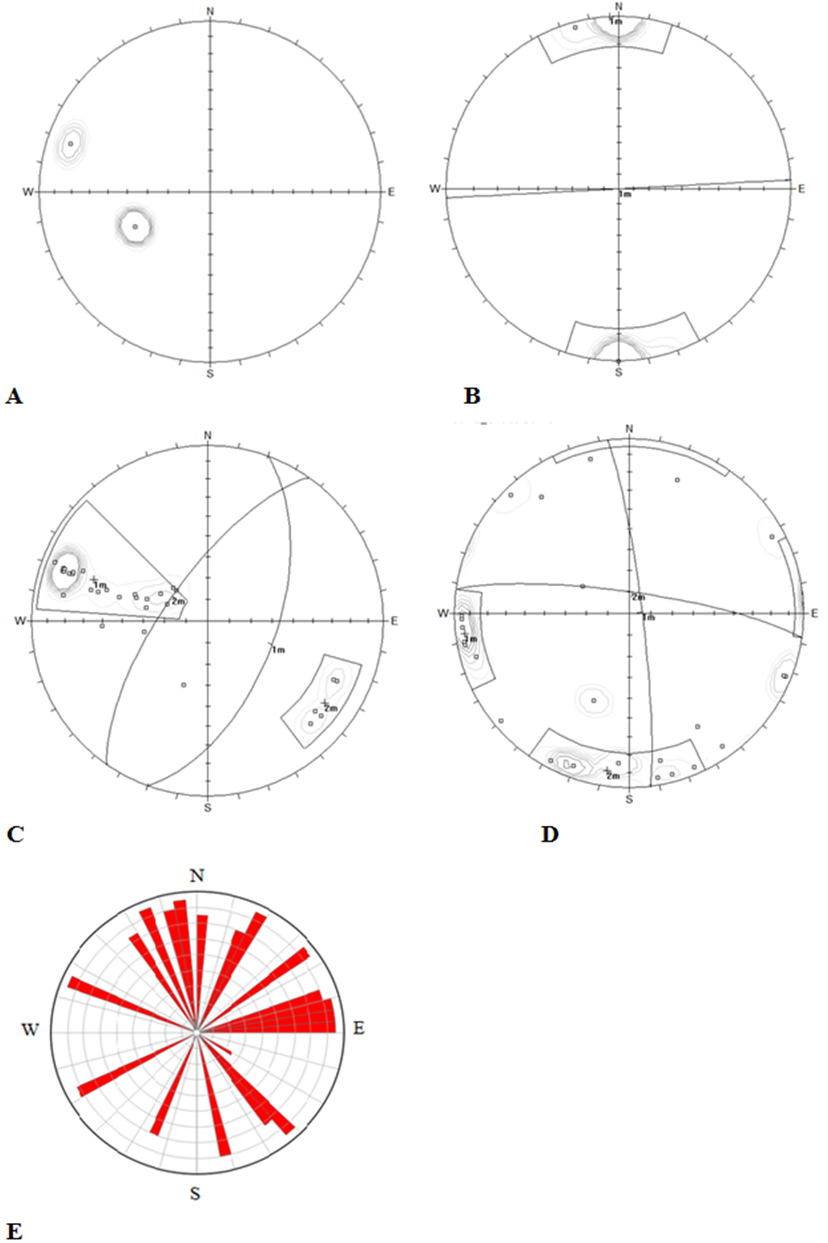

Figure 3. Equal Area Stereographic Projections of Structural Features Identified from Site 2, within the DGC. (A) Foliation sets within Acid gneisses site 2 (B) Joints sets within Acid gneisses site 2 [1 set], (C) , Foliation sets within basic gneisses at site 2 [2 sets], (D) Joints sets within basic gneisses site 2 [2 sets], (E) Rose diagram of fracture dip direction, indicating a very variable dip directions of joint system

From

Rock Fracture Characterization for Solid Waste Disposal Site Selection: A Case from Sites in the Accra-Tema Area, SE Ghana

Amadu Casmed Charles, Foli Gordon, Abanyie Samuel
