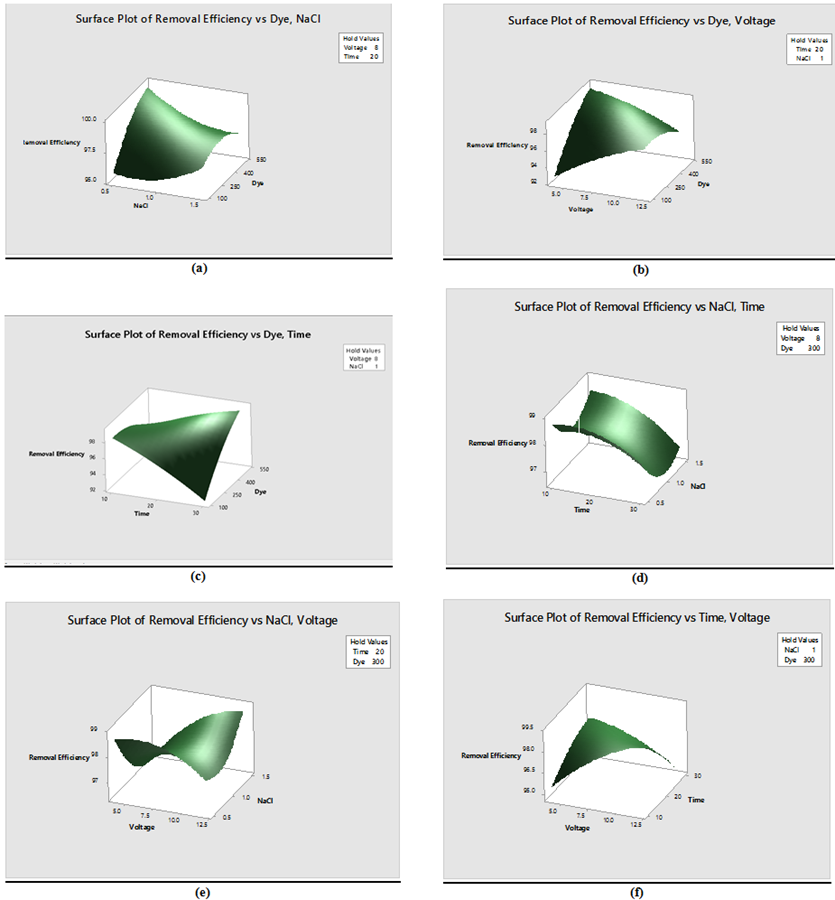

Figure 7. 3-D plots for Removal Efficiency of Brilliant Green Dye as a function of (a) initial dye concentration and NaCl conc. (b)initial dye concentration and voltage (c) initial dye concentration and time(d)NaCl conc. and time (e) NaCl conc. and voltage(f)time and voltage

From

Optimization of Brilliant Green Dye Removal Efficiency by Electrocoagulation Using Response Surface Methodology

Anmoldeep Singh, Anshumaan Srivastava, Anirudhha Tripathi, Narendra Nath Dutt

World Journal of Environmental Engineering. 2016, 4(2), 23-29 doi:10.12691/wjee-4-2-1
