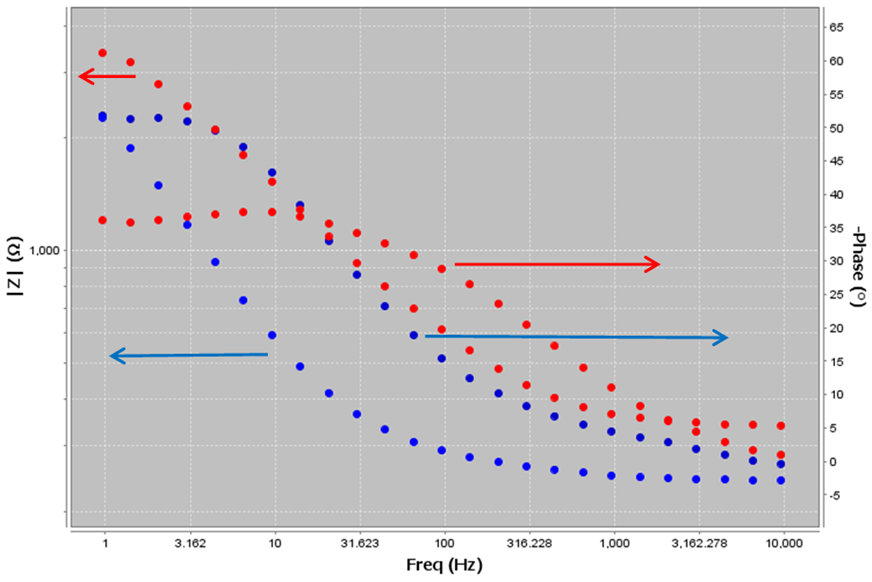

Figure 10. Top: EIS of K4[Fe(CN)6] with CNT-WE with graphene (blue points) and without graphene (red points). Top: Nyquist diagram. Bottom: Bode plot.

From

Fundamentals and Applications of Electrochemical Impedance Spectroscopy - A Didactic Perspective

Achim Habekost

World Journal of Chemical Education. 2021, 9(1), 14-21 doi:10.12691/wjce-9-1-3
