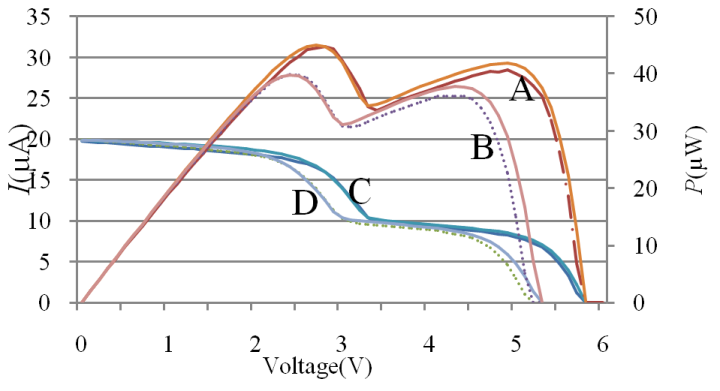

Figure 17. Experimental (broken line) and simulation (solid) results for 25°C (case A, P-V curve and case C, I-V curve) and 40°C (case B, P-V curve and case D, I-V curve), when the conditions are 20-10-20-20.

From

Photovoltaic Cell String Layout

João Paulo N. Torres, Carlos Alberto Fernandes, João C. Leite

Sustainable Energy. 2017, 5(1), 16-25 doi:10.12691/rse-5-1-3
