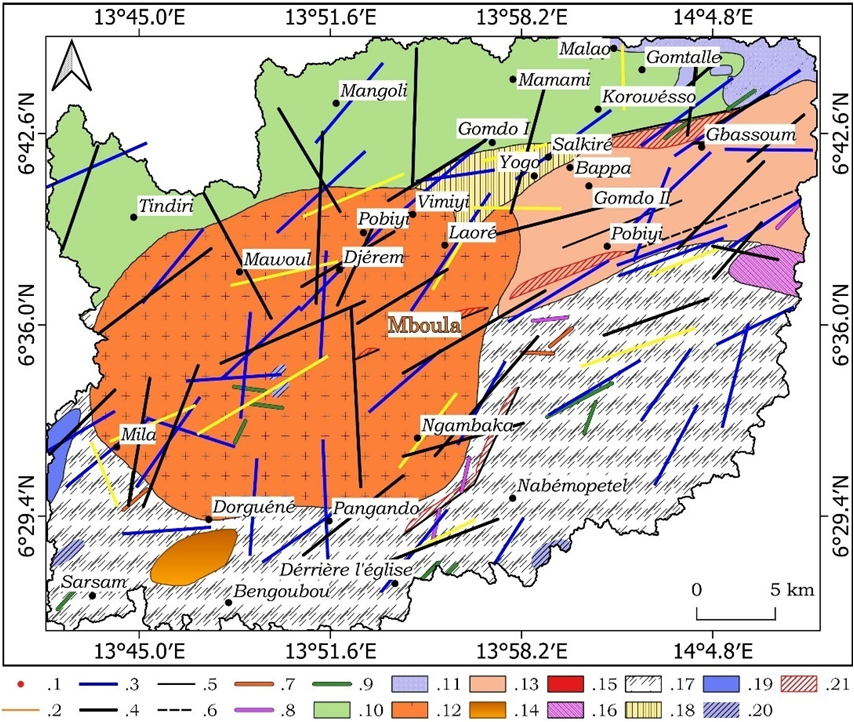

Figure 12. Comparison of lithological data [8], tectonics and lineaments: (1) Locality; (2) Ground setbacks; (3) Watercourse setbacks; (4) Strong spectral signature; (5) fault; (6) Supposed fault; (7) Pegmatite vein; (8) Quartz vein; (9) granite vein; (10) Sandstone series; (11) Basalt; (12) Biotite and amphibole granite; (13) Granite Chlorite; (14) Granite) biotite and garnet; (15) Granite Biotite; (16) Orthogneiss; (17) Biotite and amphibole migmatite; (18) Migmatite biotite; (19) Biotite and amphibole gneiss; (20) Ampphibolite; (21) Mylonithe

From

Morphotectonic Analysis of Mboula Area in Relation with Central Cameroon Shear Zone (CCSZ) and Lithology Using Remote Sensing and Field Data

Awé Wangméné Salomon, Tchameni Rigobert, Daouda Dawaï, Amadou Diguim Kepnamou, Danra Moh Guela Guy Basile, Haskandi Kalaza Josué, Bayanbé Gaoussou, Sini André
