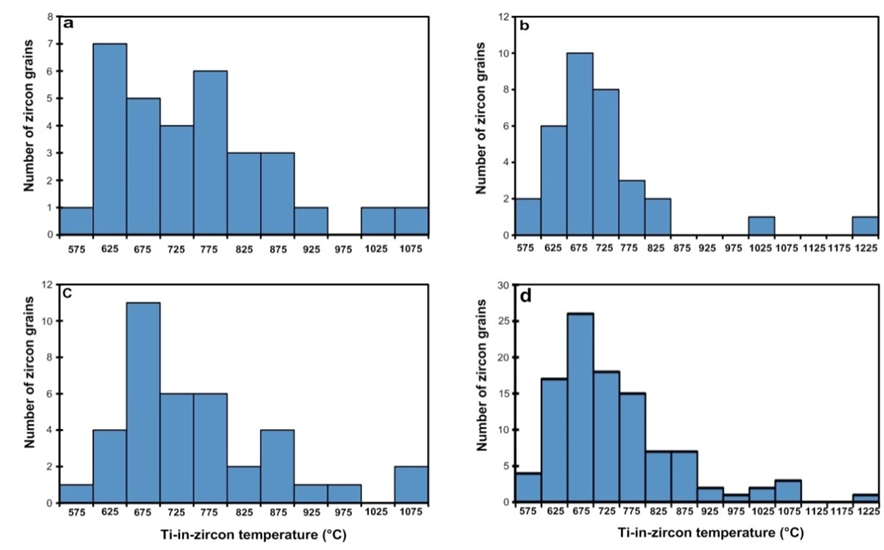

Figure 4. Zircon crystallization temperature of the various granitic samples obtained through Ti-in-zircon thermometry [34]. a - Temperature variation in zircon grains from sample CMR06. b - Temperature variation in zircon grains from sample CMR07 c - Temperature variation in zircon grains from sample CMR08. d - Temperature variation in all three samples combined. The mean temperature is 700 ± 2 °C

From

New LA-ICP-MS U-Pb Ages, Lu-Hf Systematics and REE Characterization of Zircons from a Granitic Pluton in the Betare Oya Gold District, SE Cameroon

Kevin I. Ateh, Cheo E. Suh, Elisha M. Shemang, A. Vishiti, Enerst Tata, Nelson N. Chombong
