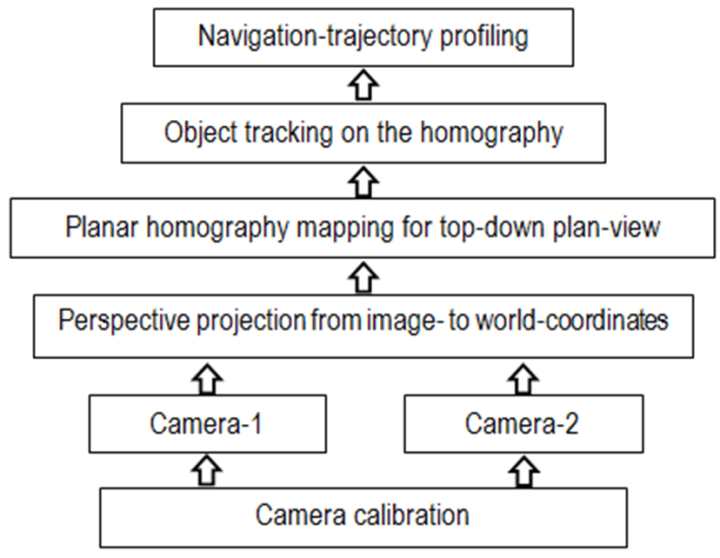

Figure 4. Overall System Diagram for the processes from imaging to trajectory profiling

From

Computational Vision for Automatic Tracking and Objective Estimation of Mobile Robot Trajectory

Sangho Park

Journal of Computer Sciences and Applications. 2018, 6(1), 17-22 doi:10.12691/jcsa-6-1-2
