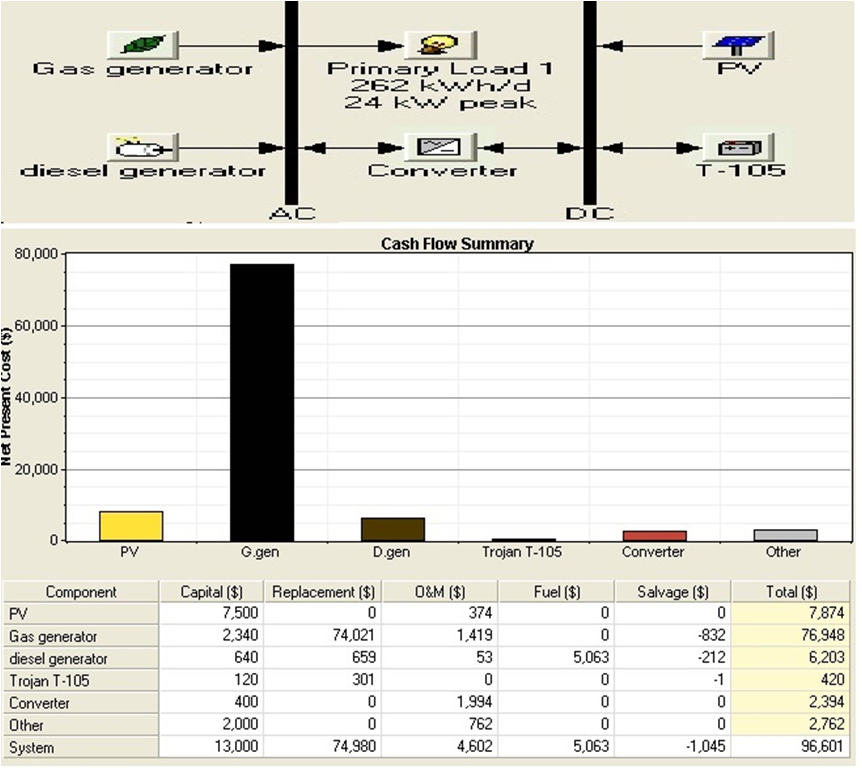

Figure 7. The hybrid energy system with gas generator, PV array and diesel generator and it’s cost flow summery

From

Feasibility Study of Renewable Energy Resources and Optimization of Hybrid Energy System of Some Rural Area in Bangladesh

Aminul Islam, Md. Shahjahan, R.H. Khan, A. Kashem, K. N. Babi

International Journal of Physics. 2015, 3(5), 216-223 doi:10.12691/ijp-3-5-4
