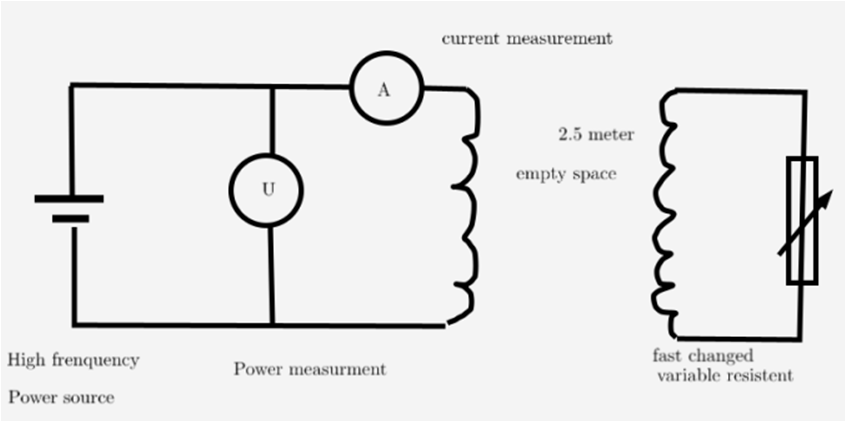

Figure 4. is an alternative for figure 3. We have known the secondary coil of the transformer sucks the energy of the primary coil. The secondary coil will suck the energy from the primary coil, this is like the receiver antenna suck the energy from the transmitter energy. Hence the transformer is also suite to do this kind of experiment. Perhaps the scattering effect of transformer is less than antennas. When the secondary coil is separated from the primary coil, the two coils can also be seen as two antennas. Assuming two coils are placed on a 2-meter long magnetic rod

From

Experiment to Prove the Existence of the Advanced Wave and Experiment to Prove the Wrong Definition of Magnetic Field in Maxwell’s Theory

Shuang-ren Zhao
