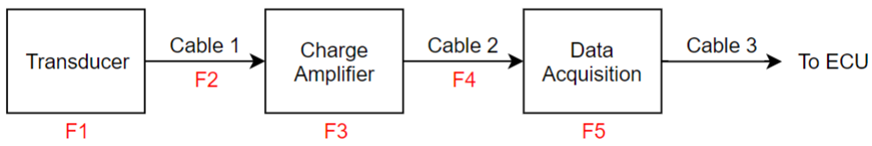

Figure 6. Faults in Transducer (F1), Charge transfer cable (F2), Charge amplifier (F3), Analogue cable (F4), Data acquisition (F5)

From

A Model-based Method of Monitoring Combustion Pressure Measurement Chains for Closed-loop Combustion Control Applications

David R. Rogers, Antonios Pezouvanis, Nikolaos Kalantzis

American Journal of Mechanical Engineering. 2021, 9(1), 24-40 doi:10.12691/ajme-9-1-4
