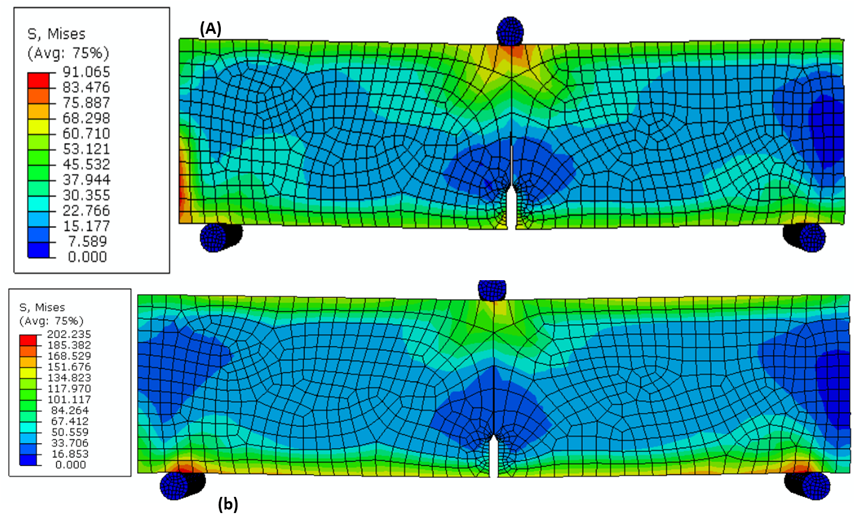

Figure 8. Mises stress for titanium foam A) 62.5 % b) 65 %

From

Fracture Toughness of Titanium Foam Using Finite Element Crushable Foam Model

Talal S. Mandourah

American Journal of Mechanical Engineering. 2018, 6(3), 127-131 doi:10.12691/ajme-6-3-5
