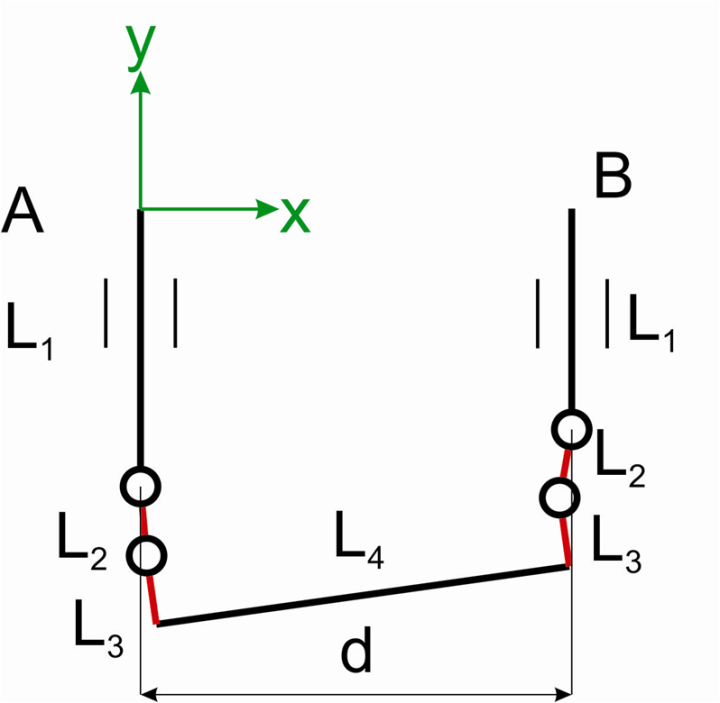

Figure 5. Simplified model for inverse kinematic task

From

Kinematic Analysis of Planar Parallel Mechanism

František Trebuňa, Michal Kelemen, Ivan Virgala, Alexander Gmiterko

American Journal of Mechanical Engineering. 2017, 5(6), 303-306 doi:10.12691/ajme-5-6-14
