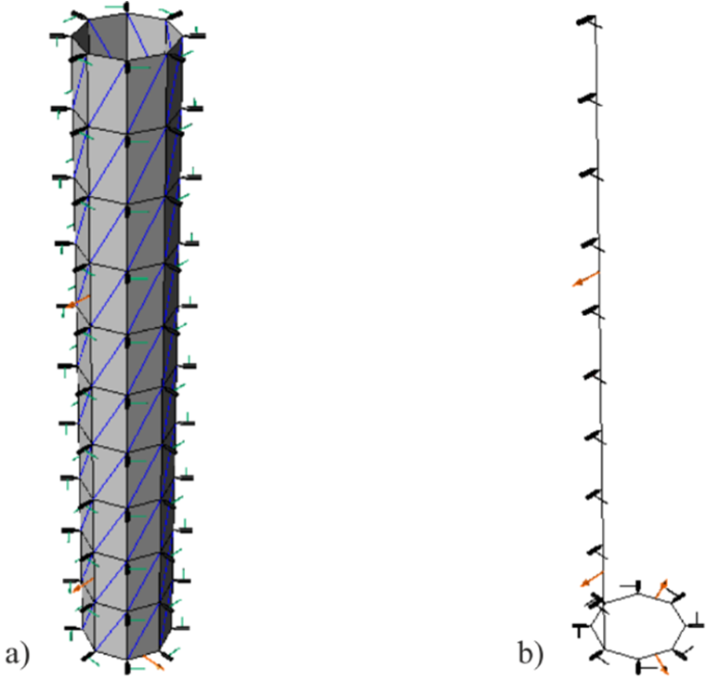

Figure 3. Models of geometry: a) full (planar), b) simplified (line)

From

Experimental Assumption of Steel Pipe Modal Parameters Using Common and Simplified Approach

Martin Hagara, Jozef Bocko

American Journal of Mechanical Engineering. 2017, 5(6), 284-288 doi:10.12691/ajme-5-6-10
