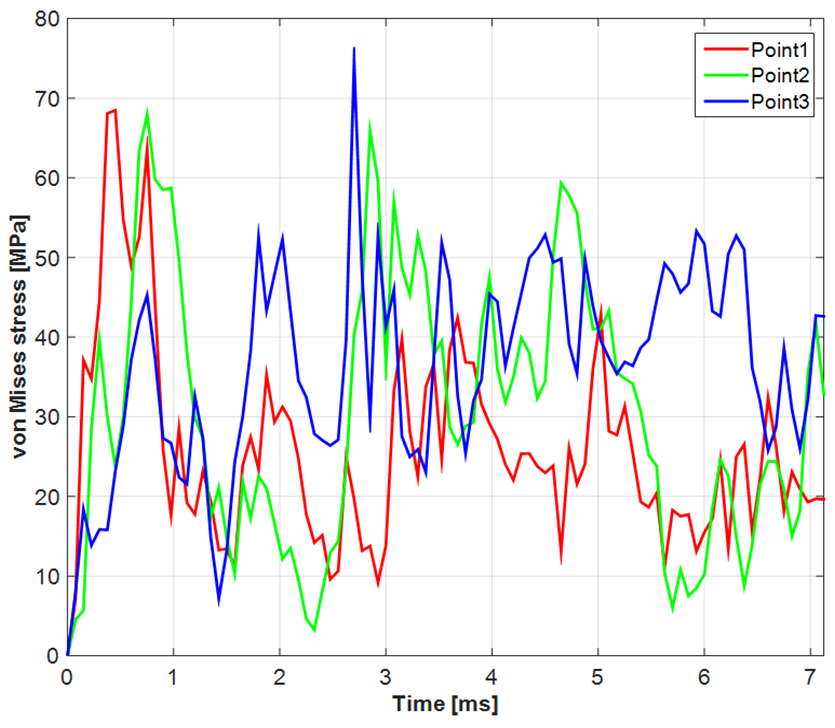

Figure 18. Course of Von Mises stress obtained in impact type E

From

The Methodology for Realization of Smartphone Drop Test Using Digital Image Correlation

Martin Hagara, Róbert Huňady, Pavol Lengvarský, Jozef Bocko

American Journal of Mechanical Engineering. 2016, 4(7), 423-428 doi:10.12691/ajme-4-7-35
