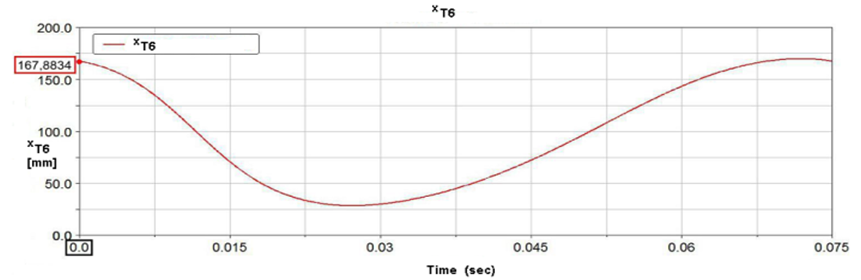

Figure 25. The graph of the displacement of the center of mass of member 6 in the axis x dependent on time

From

Kinematical Analysis of Crank Slider Mechanism with Graphical Method and by Computer Simulation

Hroncová Darina, Frankovský Peter, Bettes Gabriel

American Journal of Mechanical Engineering. 2016, 4(7), 329-343 doi:10.12691/ajme-4-7-18
