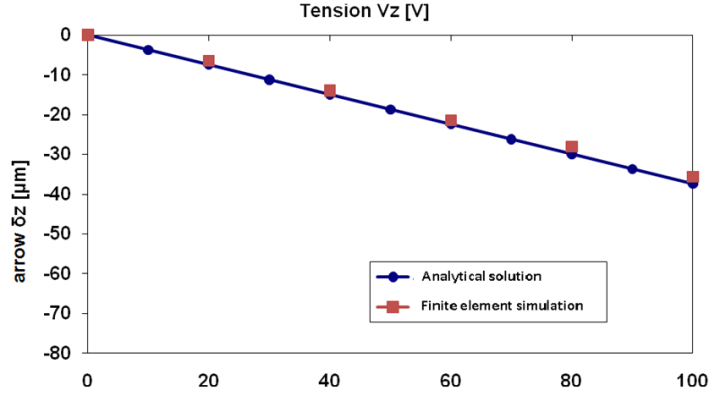

Figure 7. Free deflections δz of the piezoelectric beam depending on the control voltage Vz

From

Analytical Modeling of a Piezoelectric Bimorph Beam

A. Lebied, B. Necib, M. SAHLI

American Journal of Mechanical Engineering. 2016, 4(1), 7-10 doi:10.12691/ajme-4-1-2
