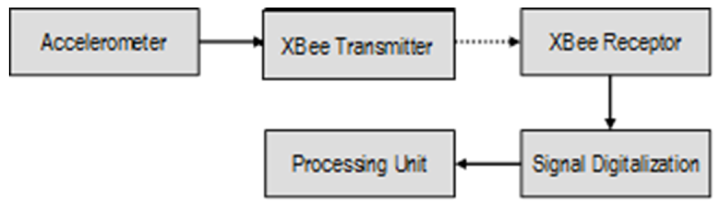

Figure 7. Block diagram representing the data acquisition and transmission from the accelerometer to the Processing Unit.

From

A New Electronically Monitored Centrifuge for the Analysis of Plant Growth in Simulated Hypergravity

M. J. A. Nava, T. Russomano, M. A. dos Santos, L. B. Poehls

American Journal of Medical and Biological Research. 2015, 3(4), 88-94 doi:10.12691/ajmbr-3-4-2
