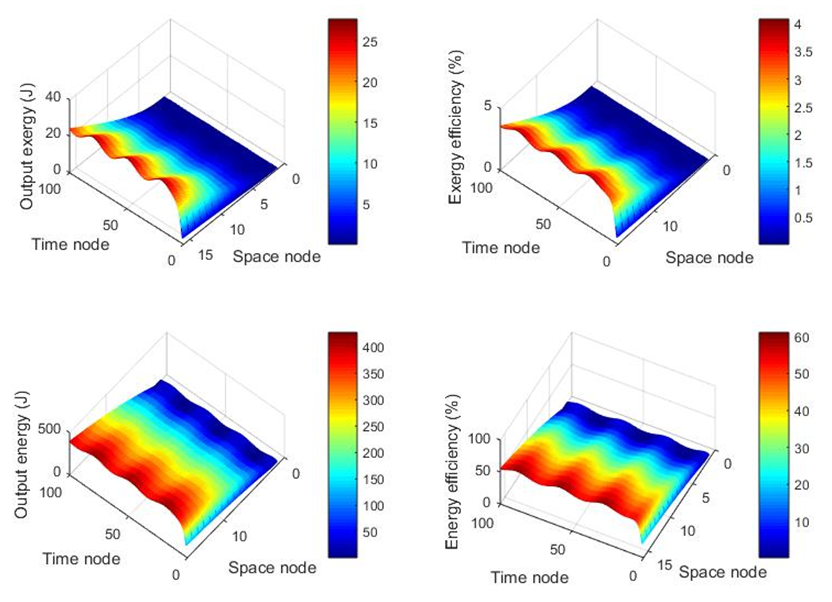

Figure 10. Three-dimensional view of the output exergy and energy, and the corresponding exergy and energy efficiencies

From

A Thermal Node Model for Predicting Heat Transfer in Mixed Type Solar Drying System

Carine Pamela Aghogue Donchi, Ernest Léontin Lemoubou, Hervé Thierry Tagne Kamdem, René Tchinda

American Journal of Energy Research. 2021, 9(1), 6-20 doi:10.12691/ajer-9-1-2
