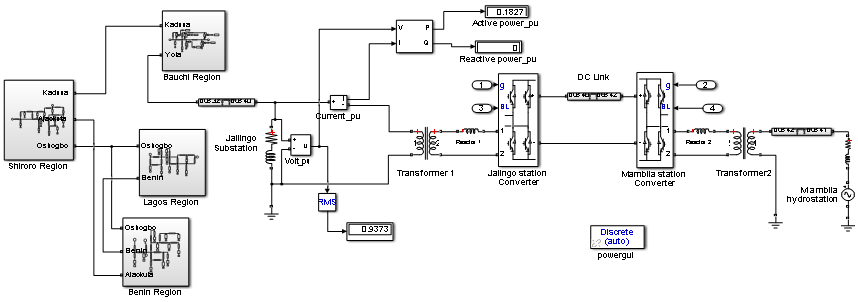

Figure 7. Simulation diagram of Nigerian 330kV, 41-bus Transmission grid with the HVDC System inserted between Jalingo and Mambila stations and different sections of the network represented with model blocks

From

Enhancement of Transmission Efficiency and Voltage Profile in the Bauchi Axis of Nigerian Power Grid Using a VSC-HVDC System

Felix Kalunta, Obiageli Ngwu

American Journal of Electrical and Electronic Engineering. 2021, 9(1), 12-20 doi:10.12691/ajeee-9-1-3
