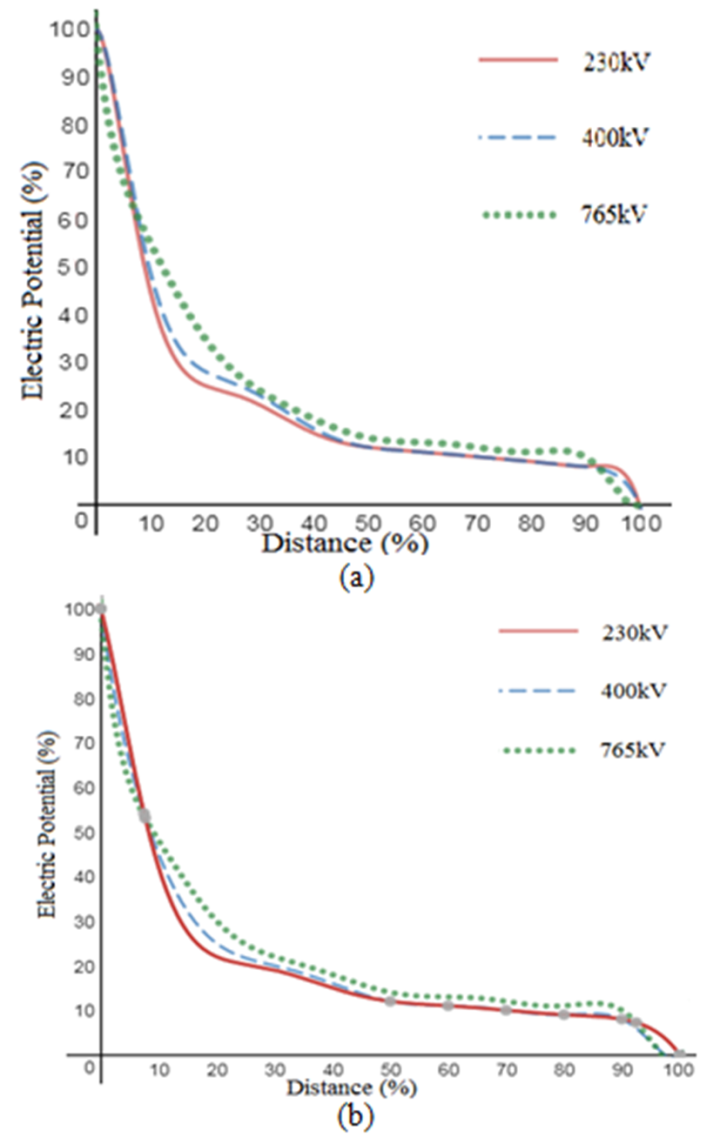

Figure 6. Voltage distribution for polymeric insulators along the insulation distance at the center line of the rods. The voltage is normalized against the maximum value for each voltage and distance is normalized against the insulation distance from the HV end to the ground end. a) Without corona ring. b) With corona ring

From

Comprehensive Analysis for Electric Field and Potential for Polymeric and Ceramic Insulators

Mohamad Saleh Sanjari Nia, Mohammad Altimania, Pourya Shamsi, Mehdi Ferdowsi

American Journal of Electrical and Electronic Engineering. 2020, 8(1), 26-34 doi:10.12691/ajeee-8-1-4
