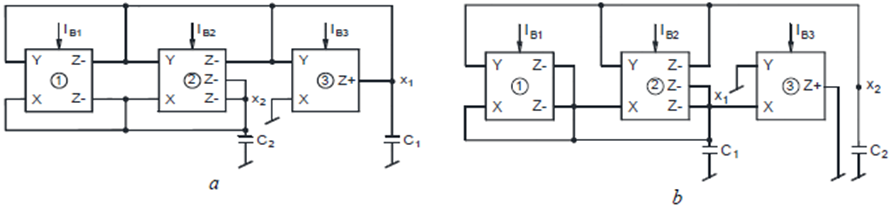

Figure 5. New oscillator circuits synthesized from the NEs (23) and (24)

From

State-variable Synthesis of Electronically-Controllable Sinusoidal Oscillators

Manoj Kumar Jain, V. K. Singh, Raj Senani

American Journal of Electrical and Electronic Engineering. 2020, 8(1), 11-20 doi:10.12691/ajeee-8-1-2
