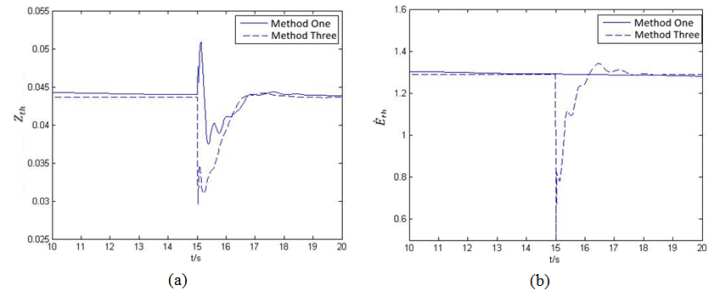

Figure 8. Thevenin formula estimates the scatter plot when system disturbance: (a) Thevenin equivalent impedance comparison chart of the two methods, (b) Thevenin equivalent potential comparison chart for two methods

From

Research on Dynamic Thevenin Equivalence Method Based on Deviation Correction

Wang Ying, Ma Gang, Tang Yi

American Journal of Electrical and Electronic Engineering. 2017, 5(6), 195-201 doi:10.12691/ajeee-5-6-1
