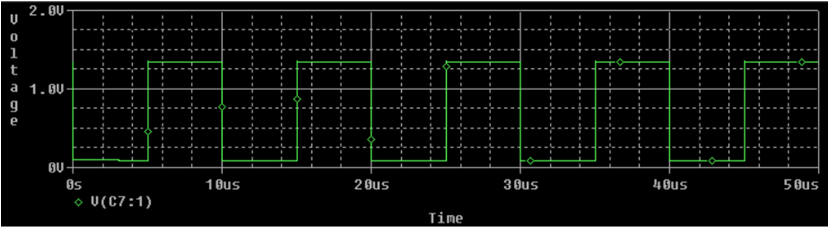

Figure 16. Transitional regime after the 1st inverter stage, 0.1 MHz

From

Inter-satellites Optical Communication Systems for Defense

João Miguel Trindade, João Paulo N. Torres, António Baptista, Mª João Martins

American Journal of Electrical and Electronic Engineering. 2017, 5(3), 108-119 doi:10.12691/ajeee-5-3-6
