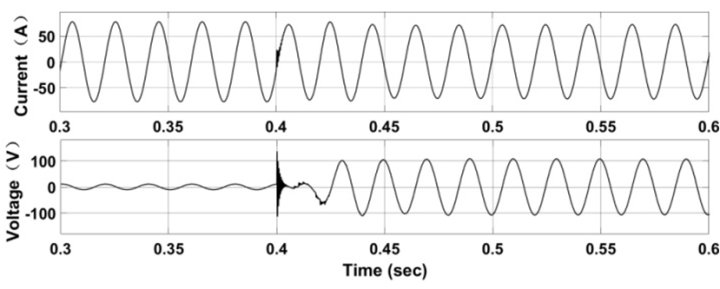

Figure 10. Waveforms of the ES voltage and the noncritical load current with the ES activated

From

Application of Electric Spring in Traction Train Auxiliary Power Supply System

Huaiyi Chen, Xuehong Wu, Yixi Chen, Guchao Xu, Gang Ma

American Journal of Electrical and Electronic Engineering. 2016, 4(6), 182-186 doi:10.12691/ajeee-4-6-5
