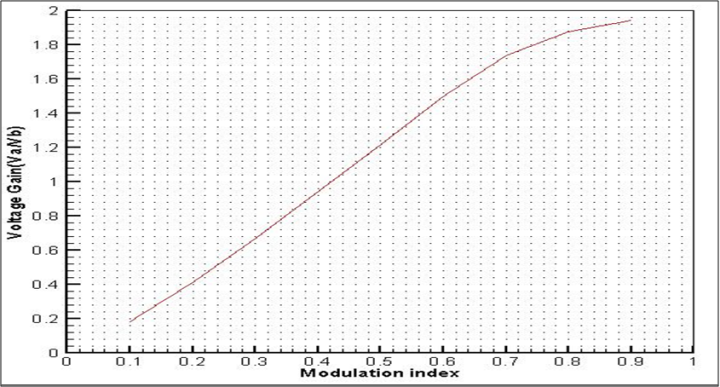

Figure 14. Characteristics Curve of Voltage Gain Vs Modulation Index of the Four quadrant SEPIC Chopper for the circuit Figure 8

From

A New Single Source Topology Four Quadrant DC-DC SEPIC Converter

Md. Maidul Islam, Md. Aman Khan, Mohammad Ali Choudhury

American Journal of Electrical and Electronic Engineering. 2016, 4(5), 131-138 doi:10.12691/ajeee-4-5-2
